The Lexus LS500h is built around quietness, comfort and smoothness, which is why the first sign of trouble is usually a sound rather than a warning light. Between roughly 60,000 and 120,000 km, a share of these flagship hybrids begin to report noise and small power hesitations from the hybrid system, and most of those complaints trace back to three causes: aged damping parts, software calibration drift, and battery cell degradation. None of them is a core failure, but each has a distinct sound and a distinct fix.
The four cases below are the ones most commonly documented on this flagship hybrid, with the symptoms and repairs kept as the workshop recorded them. For a parts buyer the point is to separate the items a shop can simply replace from the ones that belong to the dealer’s high-voltage side.
Case 1 — a light ticking at EV idle that grows with the air conditioning on
Symptom. In EV mode at a standstill the motor gives off a light ticking, and the sound grows slightly once the air conditioning is switched on.
Diagnosis. The noise is traced to the rubber damper bushing on the air conditioner compressor, which hardens with age, and to compressor mount bolts that can work loose over the same distance.
Fix. Replace the compressor damper bushing and re-tighten the mount bolts.
Case 2 — a hesitation when the motor and engine swap drive at low speed
Symptom. During low-speed acceleration the handover between motor drive and engine drive hesitates, with a slight lurch through the body.
Diagnosis. The control calibration is ruled out first by upgrading the hybrid system software. Where the hesitation stays, the clutch plates inside the power split device are inspected for wear.
Fix. Upgrade the hybrid control software, and replace the power split device clutch plates only when wear is confirmed.
Case 3 — a hum from the hybrid system at highway cruise
Symptom. At highway cruise the hybrid system gives off a humming resonance that becomes obvious above 100 km/h.
Diagnosis. The mounting points between the motor bay and the body are checked for looseness.
Fix. Tighten the mounting bolts and add damping washers, then carry out a dynamic balance correction on the motor.
Case 4 — a battery voltage warning that drops the car into reduced-power mode
Symptom. A “motor/battery voltage abnormal” warning appears and the car enters a reduced-power mode.
Diagnosis. The individual cell voltages in the battery pack are read to find the cells that have degraded.
Fix. Replace the degraded cells and the battery management system sensor together.
Parts notes. Most of the items in the four fixes sit on the high-voltage or dealer side, so they are not part of a normal aftermarket order. On the cooling and fluid side, though, there are two service parts we stock:

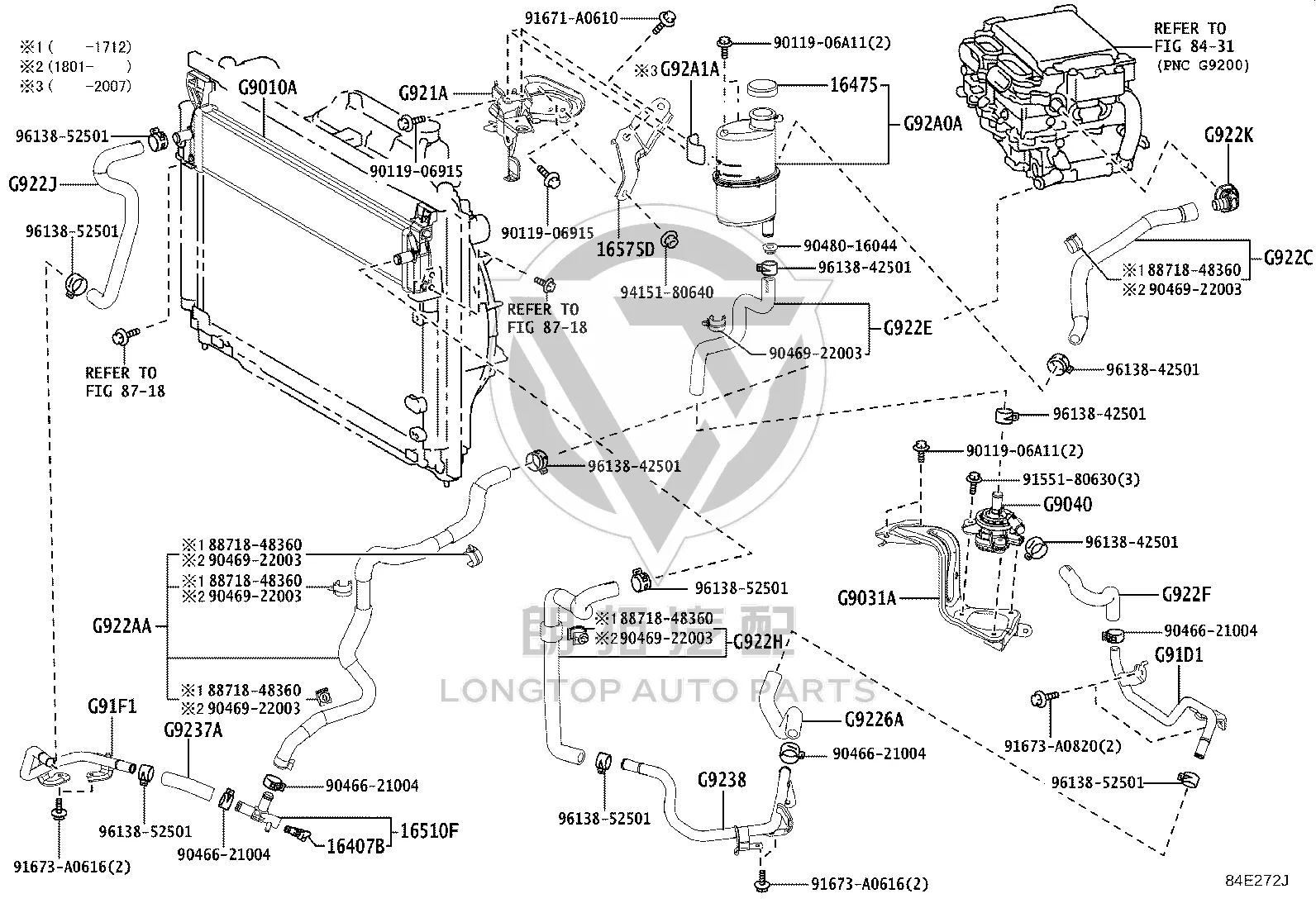

- Inverter coolant pump assembly G9040-33030, the same type of pump the LS500h hybrid cooling circuit uses. It is listed for the Lexus ES300h, GS, IS, RC and LM hybrids, the Camry Hybrid and the Alphard/Vellfire hybrid, so confirm the chassis code before ordering
- Automatic transmission fluid WS 08886-80200, the genuine fluid for the power split device oil the workshop changes on this hybrid transaxle
The workshop’s maintenance note sits underneath all four cases. The hybrid system should be checked every 20,000 km, the motor and inverter coolant and the power split device oil changed every 60,000 km, and any replacement kept to genuine parts so the system stays in calibration. The underlying point of the source ticket is that these are not core faults: the causes are damping parts, software drift and cell wear, all of which respond to the right replacement instead of a full hybrid overhaul.
What these cases teach parts buyers
- Noise does not equal a failed hybrid. The source is explicit that these are not core faults, so the buy list stays at the specific wear item rather than a system replacement.
- Match the sound to the part. A ticking that follows the air conditioning points at the compressor damper, a lurch at low speed points at the power split device, and a highway hum points at the motor mounts.
- Keep the high-voltage work on the dealer side. Battery cells and the BMS sensor belong to the high-voltage circuit and are not an aftermarket order.
- Fluid and coolant are the recurring sale. The power split device oil and the inverter coolant are changed on a schedule, so they repeat long after the one-off noise repairs, and genuine fluid is confirmed with the OE number check.
- Confirm fitment on hybrid parts. The inverter pump above is shared across the Lexus hybrid range, so check the chassis code and read how to identify genuine Toyota parts before accepting a substitute. See also the genuine parts guide.
