Toyota Corolla Sealed LED Headlight: Water Ingress, the Assembly-Only Repair, and Its Cost

On late-model Toyota Corollas the headlight is a sealed LED unit. There is no replaceable bulb behind the lens and no service hatch to reach one. When water gets inside, the only repair the design allows is replacing the entire headlight assembly, and that single constraint is what turns a small fault into a four-figure bill.

A documented case shows how quickly that happens. A Corolla XLE owner found water inside the headlight and expected a simple bulb swap. The parts chain refused the job, and the dealership quoted US$1,600 for a new light and housing together. The case is worth walking through in detail, because it maps directly onto the parts a buyer should stock for this platform.

The case: water inside a sealed Corolla headlight

Symptom

The owner noticed water trapped inside one headlight. On a conventional lamp this would point to a failed bulb, a cracked lens, or a perished seal, each of them a cheap and targeted fix. The owner’s first move was to book a bulb replacement, which is where the job stalled.

Diagnosis

The first shop to see the car refused to touch it. The reason is the design itself: this headlight is sealed completely, so there is no bulb to swap and no logical point of access to reach one. The dealership then quoted US$1,600 to replace the light and its housing together, because the whole assembly has to come out as one part. Even allowing for bumper removal to reach the lamp, the work does not justify that figure, and the gap between the two is what the sealed design adds.

The sealed design is not unique to the Corolla. From around 2018 a lot of car makers moved to sealed headlight units, and the trade-off is plain. A single moulded part is cheaper to build on the production line, which is why the design spread across the industry, but it removes the option of a small repair. The intent behind the LED is that it lasts longer than most ownership periods, which removes user-serviceable parts from the equation. An LED lamp is rated for a very long life, around 50,000 hours against roughly 500 hours for a halogen bulb, so the manufacturer’s assumption is that the light will outlast the car. The failure mode that assumption misses is environmental damage such as water ingress, which can kill the assembly long before the LED itself dies.

Fix

There is no in-place repair for a sealed headlight that has taken on water. The fix is to replace the whole assembly, and the cost is what makes owners hesitate. On a 2017 to 2019 Corolla an LED headlight replacement runs well over US$1,000, and the sealed design is the reason the figure is that high rather than the price of a single bulb. Across other makes the pattern repeats at larger scale: some sealed OEM units list at US$1,800 a side, higher-spec variants at US$2,300, and a few technology-heavy units toward US$8,000 a side.

Owners facing that quote have gone several ways. Some buy a used assembly from a breaker, some turn to the aftermarket, and some convert back to a halogen setup. Each route lowers the upfront cost but trades away the OEM fit, finish, and beam pattern.

Parts notes

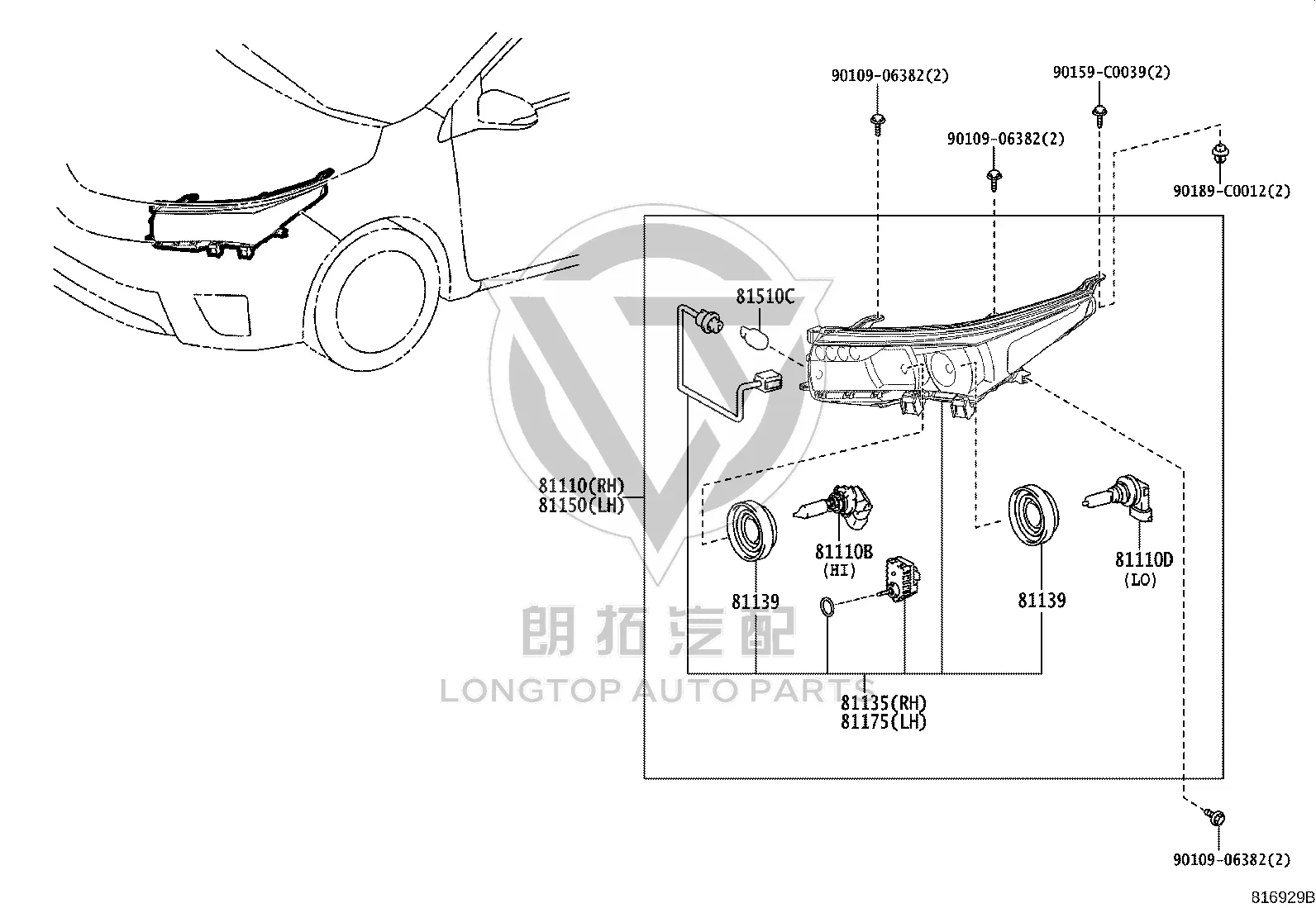

The headlight assemblies for the Corolla of this generation are 81110-02P70 for the right side and 81150-02J10 for the left side. Both are listed for the Corolla (China) built from mid-2014 to mid-2019, the same E180 generation sold in the United States through the 2019 model year. Because headlight part numbers can differ between regional builds even within one generation, confirm the exact OE number and build date before quoting. A buyer who stocks left and right together covers the most common call, since a sealed assembly is always replaced whole and often in matched pairs after a collision or a water event. Both sit in the headlights category.

What these cases teach parts buyers

• Sealed LED headlights are a replace-only part. Water ingress or a dead driver ends the whole assembly, so demand is for complete units rather than bulbs.
• The quoted cost of a sealed headlight is high because the design bundles the lamp, housing, and electronics into one part. Stocking the complete assembly is the only way to serve the repair.
• When a customer reports water in the light, the diagnosis is already decided: the assembly comes out. There is no smaller part to sell first.
• Left and right assemblies move as a pair after collisions and water events, so a buyer who carries only one side leaves half the order behind.
• Confirm the OE number and build date against the Toyota OE number guide and the genuine parts identification guide before quoting, because regional headlight numbers can shift within a single generation.
