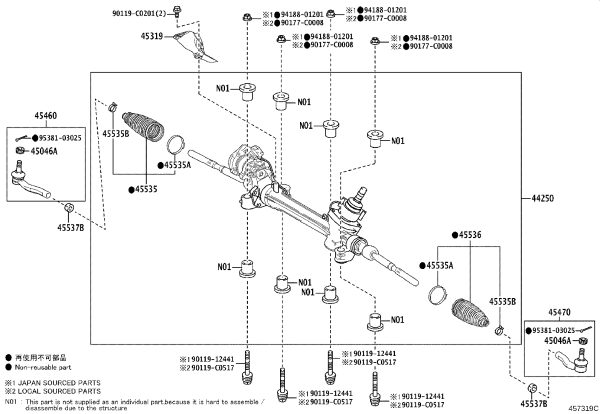

Steering Gear Outer Ball Head 45470-09190 for Toyota AVALON
4547009190 - Chassis parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $9.55 | Check Better Price |
| GAC Toyota | $9.55 | Check Better Price |
| Imported Toyota | $9.72 | Check Better Price |
Compatible Models
Vehicle models currently mapped to this OE part.
| # | Brand | Model |
|---|---|---|
| 1 | Toyota | Toyota - General area - AVALON (CHINA) - 201903 - AXXA50,AXXH50,MXXA50 |
| 2 | Toyota | Toyota - General area - Asian Dragon: AVALON (CHINA) - 201903 - AXXA50,AXXH5#,MXXA50,MXXH50 |
| 3 | Toyota | Toyota - General area - Asian Dragon: AVALON (CHINA) - 201903 - AXXA50,AXXH50,MXXA50 |
| 4 | Toyota | Toyota - General area - Camry Hybrid: CAMRY/HYBRID (CHINA) - 201712 - ASV71,AXVA70,AXVH71,MXVA71 |
| 5 | Toyota | Toyota - General area - Camry Hybrid: CAMRY/HYBRID (CHINA) - 202403 - AXVH80,MXVA80,MXVH80 |
Product Overview
This is a genuine Toyota OEM steering gear outer ball head (left), OE 45470-09190, which links the steering rack to the knuckle and sets the steering angle. It fits AVALON (CHINA) and CAMRY/HYBRID (CHINA), built from 2017 to 2024. 9 interchangeable part numbers are listed, including SE-A411L, CE0872L and CET-221L.
Ask for a wholesale quotation with your VIN or OE number; we ship worldwide.
Technical Specifications
| OE Number | 4547009190 |
| Part Name | Steering gear outer ball head (left) |
| Brand | Toyota |
| Position | Front Left Outer |
| Type | Tie Rod End |
| Install Length | 210 mm |
| Install Height | 36 mm |
| Thread | M16x1.5 RHT |
| Taper Ratio | 1:6 |
| Taper Diameter | 13.5 mm |
| Taper End Thread | M12x1.25 mm |
| Material | Iron |
| Fitment | Toyota Camry 2017- (ASV70 ASV71 AXVA70 AXVH71 GSV70), Toyota Avalon (AXXA50 AXXH50 MXXA50) |
OE Cross-Reference
| SE-A411L | 555 |
| CE0872L | CTR |
| CET-221L | CTR |
| TA3568 | Delphi |
| 0121-ASV70LH | Febest |
| 45470-09180 | Toyota |
| 45470-09200 | Toyota |
| 45470-39365 | Toyota |
| TO-ES-17831 | MOOG |
Questions and Answers
Which Toyota or Lexus models and years does 45470-09190 cover?
45470-09190 fits AVALON (CHINA) and CAMRY/HYBRID (CHINA), built from 2017 to 2024.
What is the cross-reference for 45470-09190?
9 numbers interchange with 45470-09190, including SE-A411L (555), CE0872L (CTR), CET-221L (CTR), TA3568 (Delphi).
How can I verify that 45470-09190 is a genuine Toyota part?
To verify this Steering Gear Outer Ball Head (Left), look for the ten-character number 45470-09190 on the box label together with the country-of-origin marking, then check that the part number is die-stamped or laser-etched into the metal itself rather than printed in ink, and it matches the box label, and that the metal carries the supplier’s mark cast or stamped next to Toyota’s own mark, not a separate printed sticker. We can provide the invoice, packing list and CoO for any order.
Where is 45470-09190 installed on the vehicle?
It is fitted in the Front Left Outer position.
How many pieces are needed for 45470-09190?
You get one piece per position – check the quantity required for your application.
Is there anything I need to know before installing this part?
Worth knowing first: Compare the number on the part with your invoice before installation, and follow the torque values in the service manual.
Is the genuine part worth it compared with an aftermarket equivalent?
The genuine part differs in ways that show up in service: the part is machined to OE tolerance, so it mounts and seats without shimming or rework, and the OE heat treatment and surface finish help the part resist wear, corrosion and seizing. These are the aftermarket equivalents you may also see quoted.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products

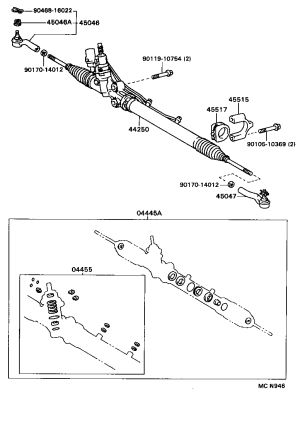

Front Right Outer Tie Rod End 45460-39395 for Toyota Brevis

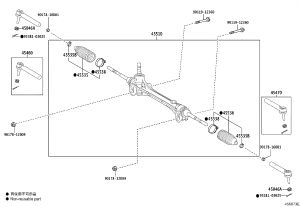

Steering Outer Ball Joint 45460-49085 for Lexus RX

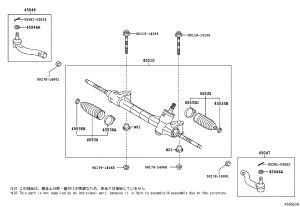

Steering Rack Outer Tie Rod End 45047-49135 for Toyota ZELAS
