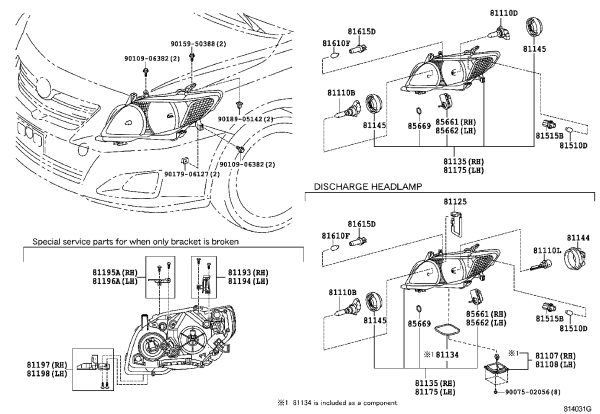

Front Headlight Subassembly (Right) 81130-12A60 for Toyota Corolla
8113012A60 - Electrical components
Compatible Models
Vehicle models currently mapped to this OE part.
Product Overview
The genuine Toyota front headlight subassembly (right), OE 81130-12A60, lights the road ahead and forms the front lamps of the vehicle. Fits COROLLA SED (JPP), built from 2006 onwards. The listing carries 4 interchangeable numbers, among them 81180134, 5389962 and 212-11M7R-LD-EM.
Ask for a wholesale quotation with your VIN or OE number; we ship worldwide.
Technical Specifications
| OE Number | 8113012A60 |
| Part Name | Front headlight subassembly (right) |
| Brand | Toyota |
| Position | Front Right |
| Type | Headlamp Unit (Sub-Assembly) |
| Weight | 3.43 kg |
| Length | 640 mm |
| Width | 290 mm |
| Depth | 260 mm |
| Bulb Type | HB4/HB3 |
| Housing Colour | Chrome |
OE Cross-Reference
| 81180134 | Klokkerholm |
| 5389962 | Van Wezel |
| 212-11M7R-LD-EM | Depo |
| 20-B151-05-6B | TYC |
Questions and Answers
Which Toyota or Lexus models and years does 81130-12A60 cover?
81130-12A60 fits COROLLA SED (JPP), built from 2006 onwards. Chassis codes include ADE150, NDE150, NRE150, ZRE151, ZZE150.
Which chassis codes does 81130-12A60 cover?
Chassis codes include ADE150, NDE150, NRE150, ZRE151, ZZE150.
What is the cross-reference for 81130-12A60?
4 numbers interchange with 81130-12A60, including 81180134 (Klokkerholm), 5389962 (Van Wezel), 212-11M7R-LD-EM (Depo), 20-B151-05-6B (TYC).
What are the dimensions of 81130-12A60?
81130-12A60 measures 640 mm long, and 290 mm wide.
How can I verify that 81130-12A60 is a genuine Toyota part?
To verify this Front Headlight Subassembly (Right), look for the ten-character number 81130-12A60 on the box label together with the country-of-origin marking, then check that the housing is laser-etched with a deep, sharp part number rather than carrying a printed sticker, and that the connector has the factory-keyed pin count and latch geometry that only one position on the harness accepts. We can provide the invoice, packing list and CoO for any order.
Where is 81130-12A60 installed on the vehicle?
It is fitted in the Front Right position.
How many pieces are needed for 81130-12A60?
You get one piece per position – check the quantity required for your application.
Is there anything I need to know before installing this part?
Worth knowing first: Compare the number on the part with your invoice before installation, and follow the torque values in the service manual.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Right Fog Lamp Shield 81483-60020 for Toyota Land Cruiser Prado

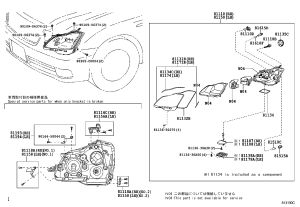

Headlight Assembly (Left) 81150-0N012 for Toyota Crown
