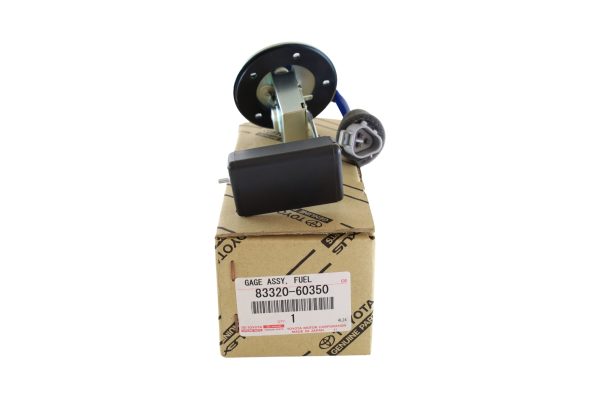

Fuel Position Sensor 83320-60350 for Toyota Land Cruiser
8332060350 - Electrical components
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $32.99 | Check Better Price |
| Imported Toyota | $45.31 | Check Better Price |
| Lexus | $45.18 | Check Better Price |
Compatible Models
Vehicle models currently mapped to this OE part.
More LEXUS LX470 Parts
Other genuine lexus parts that fit the LEXUS LX470 platform.
Shift mechanism oil seal 90311-12002 for Toyota 4RUNNER
9031112002
Injector Seal Lower 23291-41010 for Toyota ALPHARD
2329141010
Rear Door Anti-Wear Plate Clip 90467-09206 for Toyota 4RUNNER
9046709206
Seal Ring 90301-21009 for Toyota 4RUNNER
9030121009
Spark Plug Gasket 11193-50010 for Toyota Land Cruiser
1119350010
Engine Oil Cooler Gasket 90301-67004 for Toyota 4RUNNER
9030167004
Seal Ring 90301-07024 for Toyota 4RUNNER
9030107024
Exhaust Valve 13715-50070 for Toyota Land Cruiser
1371550070
Product Overview
This is a genuine Toyota OEM fuel position sensor (right), OE 83320-60350, which measures the fuel level in the tank. It is used on LEXUS LX470 and LAND CRUISER 100, built from 1998 onwards. The part sits in the Sub (right) position.
Ask for a wholesale quotation with your VIN or OE number; we ship worldwide.
Technical Specifications
| OE Number | 8332060350 |
| Part Name | Fuel Level Sensor |
| Brand | Toyota |
| Position | Sub (right) |
| Type | Fuel Position Sensor |
| Length | 142mm |
| Width | 88mm |
| Height | 64mm |
| Weight | 138g |
Questions and Answers
Which Toyota and Lexus models does 83320-60350 fit?
Genuine Toyota Fuel Position Sensor (Right) 83320-60350 is used on LEXUS LX470 and LAND CRUISER 100, built from 1998 onwards. Chassis codes include FZJ10#, HDJ100, HZJ105, UZJ100.
Which chassis codes does 83320-60350 cover?
Chassis codes include FZJ10#, HDJ100, HZJ105, UZJ100.
What are the dimensions of 83320-60350?
Genuine Toyota Fuel Position Sensor (Right) 83320-60350 measures 142mm long, 88mm wide, and 64mm high.
How can I verify that 83320-60350 is a genuine Toyota part?
To verify this Fuel Position Sensor (Right), look for the ten-character number 83320-60350 on the box label together with the country-of-origin marking, then check that the cable entry into the sensor body is sealed by a moulded rubber grommet and the body itself carries the moulded OE number, and that the retail number appears only on the box and the sealed bag, while the sensor body shows only an internal identification code. We can provide the invoice, packing list and CoO for any order.
Where is 83320-60350 installed on the vehicle?
It is fitted in the Sub (right) position.
How many pieces are needed for 83320-60350?
Supplied as one piece per position – check the quantity required for your application.
Is there anything I need to know before installing this part?
Yes. Relieve the fuel-system pressure before opening any joint, and fit a new O-ring or retainer clip on reassembly.
Is the genuine part worth it compared with an aftermarket equivalent?
The genuine part earns its price in details that matter over time: the factory-keyed connector plugs straight into your harness with no adapters or rewiring; and the unit is calibrated to the factory signal range, so the ECU reads it without fault codes.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products

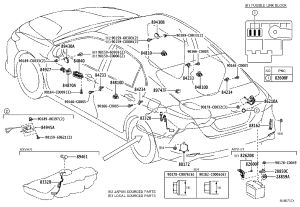

Fuel Position Sensor 83320-33150 for Toyota CAMRY
Fuel Pressure Sensor 23280-38020 for Toyota Avalon

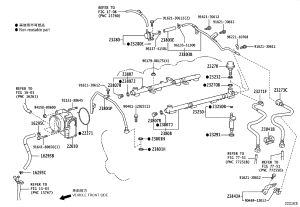

Fuel Pressure Sensor 23280-50050 for Toyota Land Cruiser

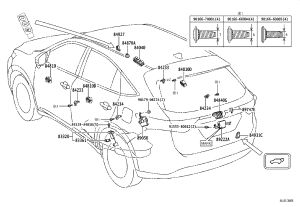

Fuel Position Sensor 83320-49205 for Toyota Harrier
