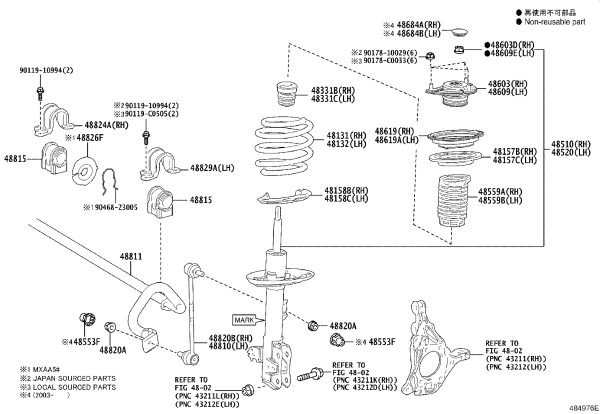

Front shock absorber core (right) 48510-8Z427 for Toyota RAV4
485108Z427 - Chassis parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $38.31 | Check Better Price |
| Imported Toyota | $40.69 | Check Better Price |
Compatible Models
Vehicle models currently mapped to this OE part.
| # | Brand | Model |
|---|---|---|
| 1 | Toyota | Toyota - General area - RAV4 (CHINA) - 201911 - AXAH5#,AXAL5#,MXAA5 |
| 2 | Toyota | Toyota - General area - RAV4 (SFTM) - 201911 - AXAH5#,AXAL5#.MXAA5 |
Product Overview
The genuine Toyota front shock absorber core (right), OE 48510-8Z427, damps suspension travel inside the strut housing. Fits RAV4 (CHINA, SFTM), built from 2019 onwards. The listing carries 3 interchangeable numbers, among them 3350086, G8688 and 560240.
Ask for a wholesale quotation with your VIN or OE number; we ship worldwide.
Technical Specifications
| OE Number | 485108Z427 |
| Part Name | Shock Absorber Core |
| Brand | Toyota |
| Position | Front Right |
| Type | Shock Absorber core (front right Toyota RAV4 2019.11+ AXAH5#/AXAL5#/MXAA5#) |
| Length | 547 mm |
| Width | 127 mm |
| Height | 127 mm |
OE Cross-Reference
| 3350086 | KYB |
| G8688 | Monroe |
| 560 240 | Sachs |
Questions and Answers
Which Toyota and Lexus models does 48510-8Z427 fit?
Genuine Toyota Front Shock Absorber Core (Right) 48510-8Z427 is used on RAV4 (CHINA, SFTM), built from 2019 onwards. Chassis codes include AXAH5#, AXAL5#, MXAA5#.
Which chassis codes does 48510-8Z427 cover?
Chassis codes include AXAH5#, AXAL5#, MXAA5#.
Which OEM part numbers interchange with 48510-8Z427?
3 interchangeable part numbers are listed for 48510-8Z427, including 3350086 (KYB), G8688 (Monroe), 560 240 (Sachs).
What are the dimensions of 48510-8Z427?
Genuine Toyota Front Shock Absorber Core (Right) 48510-8Z427 measures 547 mm long, 127 mm wide, and 127 mm high.
How can I verify that 48510-8Z427 is a genuine Toyota part?
To verify this Front Shock Absorber Core (Right), look for the ten-character number 48510-8Z427 on the box label together with the country-of-origin marking, then check that the part number is die-stamped or laser-etched into the metal itself rather than printed in ink, and it matches the box label, and that the metal carries the supplier’s mark cast or stamped next to Toyota’s own mark, not a separate printed sticker. We can provide the invoice, packing list and CoO for any order.
Where is 48510-8Z427 installed on the vehicle?
It is fitted in the Front Right position.
How many pieces are needed for 48510-8Z427?
Supplied as one piece per corner – replace them in pairs (left and right) on the same axle.
Is there anything I need to know before installing this part?
Yes. Torque the fasteners with the suspension at ride height and have the alignment checked afterwards.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Front Shock Absorber Core (Left) 48520-8Z064 for Toyota Camry
Rear Shock Absorber Cartridge Right 48531-8Z006 for Toyota HILUX

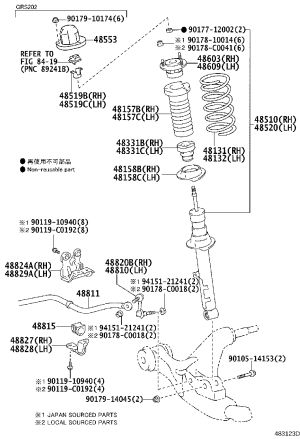

Front Shock Absorber Core (Left) 48520-09S20 for Toyota Crown
