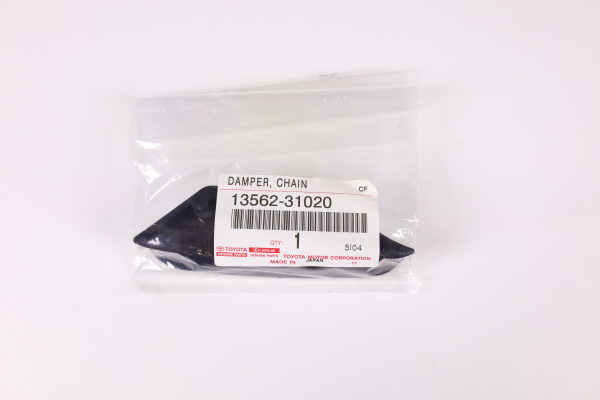

Timing Chain Guide Rail Top Left 1356231020 for Toyota Lexus
1356231020 - Engine parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote may be 40-50% lower.
| Brand | Manufacturer | Cost (Excl. Tax, USD) | Cost (Incl. Tax, USD) | Sales (Excl. Tax, USD) | Sales (Incl. Tax, USD) | Longtop Supply Quote |
|---|---|---|---|---|---|---|
| FAW Toyota | Toyota | - | - | $12.07 | $13.64 | Check Better Price |
| GAC Toyota | Toyota | - | - | $12.07 | $13.64 | Check Better Price |
| Imported Toyota | Toyota | - | - | $12.33 | $13.93 | Check Better Price |
| Lexus | Lexus | $9.32 | $10.53 | $12.33 | $13.93 | Check Better Price |
Replacements
Alternative OE numbers related to this product.
| Brand | Original OE | Replacement OE |
|---|---|---|
| - | 1356231020 | 135620P010 |
Compatible Models
Vehicle models currently mapped to this OE part.
| # | Brand | Model |
|---|---|---|
| 1 | Lexus | LEXUS ES2##/350/300H - 201206 - 201806 - ASV6#,AVV60,GSV60 |
| 2 | Lexus | LEXUS ES240/350 - 200605 - 201206 - ACV40,GSV40 |
| 3 | Lexus | LEXUS GS SERIES - 201201 - 202007 - ARL10,AWL10,GRL1#,GWL10 |
| 4 | Lexus | LEXUS GS30/35/43/460 - 200501 - 201112 - GRS19#,URS190,UZS190 |
| 5 | Lexus | LEXUS GS450H - 200602 - 201112 - GWS191 |
| 6 | Lexus | LEXUS IS2###/3### - 201304 - ASE30,AVE30,GSE3 |
| 7 | Lexus | LEXUS IS250/300 - 200604 - 201304 - GSE2 |
| 8 | Lexus | LEXUS IS250/350/2##D - 200508 - 201304 - ALE20,GSE2 |
| 9 | Lexus | LEXUS IS250C/300C - 200904 - 201507 - GSE2 |
| 10 | Lexus | LEXUS IS350/300/300H/250/200T - 201304 - ASE30,AVE30,GSE3 |
| 11 | Lexus | LEXUS LM350/LM300H - 202001 - AYH36,GGH31 |
| 12 | Lexus | LEXUS RC3###/200T - 201409 - ASC10,AVC10,GSC10 |
| 13 | Lexus | LEXUS RC350/300H/300/200T - 201409 - ASC10,AVC10,GSC10 |
| 14 | Lexus | LEXUS RX270/350/450H - 200812 - 201509 - AGL10,GGL15,GYL1 |
| 15 | Lexus | LEXUS RX300/330/350 - 200302 - 200812 - MCU3#,GSU35 |
| 16 | Lexus | LEXUS GS SERIES - 201112 - 202007 - ARL10,AWL10,GRL1#,GWL10 |
| 17 | Lexus | LEXUS GS460/430/350 - 200508 - 201112 - GRS19#,UZS190,URS190 |
| 18 | Lexus | LEXUS IS SERIES - 201304 - ASE30,AVE3#,GSE3#,USE3 |
| 19 | Lexus | LEXUS IS250/350 - 200508 - 201304 - GSE2 |
| 20 | Lexus | LEXUS IS250C/350C - 200904 - 201408 - GSE2 |
| 21 | Lexus | LEXUS RC SERIES - 201409 - ASC10,AVC10,GSC10 |
| 22 | Lexus | LEXUS RX270/350/450H - 200812 - 201509 - AGL10,GGL1#,GYL1 |
| 23 | Lexus | LEXUS GS SERIES - 201201 - 201809 - ARL10,AWL10,GRL1#,GWL10 |
| 24 | Lexus | LEXUS IS2###/3### - 201304 - ASE30,AVE30,GSE30 |
| 25 | Lexus | LEXUS IS250C - 200904 - 201507 - GSE20 |
| 26 | Lexus | LEXUS RC3###/200T - 201409 - 202008 - ASC10,AVC10,GSC10 |
| 27 | Lexus | LEXUS ES350 (NAP) - 201510 - 201807 - GSV60 |
| 28 | Lexus | LEXUS ES350 - 200603 - 201206 - GSV40 |
| 29 | Lexus | LEXUS ES350/300H(JPP - 201206 - 201806 - AVV60,GSV60 |
| 30 | Lexus | LEXUS GS SERIES - 200501 - 201112 - GRS19#,URS190,UZS190 |
| 31 | Lexus | LEXUS GS SERIES - 201112 - 202007 - ARL10,GRL1#,GWL10 |
| 32 | Lexus | LEXUS IS SERIES - 201304 - ASE30,GSE3#,USE30 |
| 33 | Lexus | LEXUS IS250C/350C - 200904 - 201507 - GSE2 |
| 34 | Lexus | LEXUS RC350/300/200T - 201409 - ASC10,GSC1 |
| 35 | Lexus | LEXUS RX330/350(JPP) - 200302 - 200812 - MCU3#,GSU3 |
| 36 | Lexus | LEXUS RX330/350(NAP) - 200309 - 200901 - MCU3#,GSU3 |
| 37 | Lexus | LEXUS RX350/450H(JPP - 200812 - 201509 - GGL1#,GYL1 |
| 38 | Lexus | LEXUS RX350/450H(NAP - 200901 - 201510 - GGL1#,GYL1 |
| 39 | Toyota | ALPHARD/VELLFIRE/HV - 200804 - 201501 - ANH20,ATH20,GGH20 |
| 40 | Toyota | ALPHARD/VELLFIRE/HV - 201501 - AGH30,AYH30,GGH30 |
| 41 | Toyota | ALPHARD/VELLFIRE/HYBRID - 201501 - AGH30,AYH30,GGH30 |
| 42 | Toyota | MARK X - 201112 - 201611 - GRX130 |
| 43 | Toyota | AVALON - 200501 - 201210 - GSX30 |
| 44 | Toyota | CAMRY/HYBRID (ASIA) - 200605 - 201207 - ACV4#,AHV40,GSV40 |
| 45 | Toyota | CAMRY/AURION/HV(ARL) - 200606 - 201110 - ACV40,AHV40,GSV40 |
| 46 | Toyota | CAMRY/AURION/HV(ARL) - 201110 - 201710 - ASV50,AVV50,GSV50 |
| 47 | Toyota | PREVIA/TARAGO - 200601 - 201910 - ACR50,GSR50 |
| 48 | Toyota | HIGHLANDER (CHINA) - 200905 - 201503 - ASU40,GSU45 |
| 49 | Toyota | HIGHLANDER (CHINA) - 201503 - ASU5#,GSU55 |
| 50 | Toyota | HIGHLANDER/KLUGER - 200705 - 201312 - GSU4 |
| 51 | Toyota | HIGHLANDER/KLUGER - 201312 - 201911 - ASU50,GSU5 |
| 52 | Toyota | CROWN (CHINA) - 200502 - 200911 - GRS18 |
| 53 | Toyota | CROWN (CHINA) - 200912 - 201501 - GRS20#,UZS200 |
| 54 | Toyota | CROWN - 200411 - 200802 - GRS182 |
| 55 | Toyota | CROWN - 201009 - 201212 - GRS202 |
| 56 | Toyota | RAV4 - 200511 - 201212 - ACA3#,ALA3#,GSA33,ZSA3 |
| 57 | Toyota | REIZ - 200510 - 201009 - GRX12 |
| 58 | Toyota | ALPHARD/VELLFIRE/HV - 200804 - 201501 - ANH2#,ATH20,GGH2 |
| 59 | Toyota | ALPHARD/VELLFIRE/HV - 201501 - AGH3#,AYH30,GGH3 |
| 60 | Toyota | BLADE - 200612 - 201204 - AZE15#,GRE156 |
| 61 | Toyota | ESTIMA - 200601 - 201910 - ACR5#,GSR5 |
| 62 | Toyota | MARK X ZIO - 200709 - 201310 - ANA1#,GGA10 |
| 63 | Toyota | MARK X - 200411 - 200909 - GRX12 |
| 64 | Toyota | MARK X - 200910 - 201912 - GRX13 |
| 65 | Toyota | HARRIER - 200302 - 201207 - ACU3#,GSU3#,MCU3 |
| 66 | Toyota | CROWN - 200802 - 201212 - GRS20#,GWS204 |
| 67 | Toyota | CROWN/HYBRID - 201212 - 201804 - ARS210,AWS21#,GRS21#,GWS214 |
| 68 | Toyota | CROWN/MAJESTA - 200312 - 200812 - GRS18#,UZS18 |
| 69 | Toyota | RAV4/VANGUARD - 200511 - 201606 - ACA3#,GSA33 |
| 70 | Toyota | CAMRY - 200601 - 201109 - ACV40,GSV40 |
| 71 | Toyota | CAMRY/HYBRID - 201108 - 201803 - ACV51,ASV5#,AVV50,GSV50 |
| 72 | Toyota | CAMRY (JPP) - 200601 - 201108 - ACV40,ASV40,GSV40 |
| 73 | Toyota | SIENNA - 200301 - 200912 - GSL2#,MCL2 |
| 74 | Toyota | VENZA - 200811 - 201612 - AGV1#,GGV1 |
| 75 | Toyota | HIGHLANDER (JPP) - 200705 - 201402 - ASU40,GSU4#,GVU48,MHU48 |
| 76 | Toyota | HIGHLANDER (NAP) - 200910 - 201312 - ASU40,GSU4 |
| 77 | Toyota | HIGHLANDER (NAP) - 201312 - 201911 - ASU50,GSU5#,GVU58 |
| 78 | Toyota | RAV4 (JPP) - 200511 - 201212 - ACA3#,ASA3#,GSA3 |
| 79 | Toyota | RAV4 (NAP) - 200811 - 201301 - ASA3#,GSA3 |
How to
Common Issues
How can I confirm this guide rail fits my vehicle?
To ensure the correct fitment, please provide your 17-digit Vehicle Identification Number (VIN). Our specialists will cross-reference your specific engine and production details against the manufacturer's database to verify that this part is the exact match for your vehicle's timing system.
What are the symptoms of a worn timing chain guide rail?
Common symptoms include audible rattling or slapping noises coming from the timing cover area, especially during cold starts or at idle. Worn guides can also lead to engine timing errors, reduced performance, or check engine lights related to camshaft and crankshaft synchronization issues.
Do you offer support for wholesale and bulk orders?
Yes, we work closely with repair shops, distributors, and wholesalers worldwide. We offer flexible order handling and reliable shipping solutions to meet your business requirements. Please reach out to our sales team with your specific volume needs to receive dedicated assistance.
Installation Guide
Preparation
Ensure the engine is completely cool before starting any work on the timing system. Gather the necessary hand tools and a service manual specific to your engine model. Work in a clean, well-lit environment to prevent debris from entering the engine block during the disassembly process.
Remove Old Part
Carefully remove the timing cover and associated components to access the timing chain assembly. Inspect the old guide rail for signs of deep grooves, cracking, or material fatigue. Use caution when loosening mounting bolts to avoid damaging the surrounding engine components or dropping hardware into the oil pan.
Install New Genuine Part
Clean the mounting surface thoroughly before installing the new genuine guide rail. Ensure the part is properly aligned and secured according to the manufacturer's specifications. We strongly recommend professional installation for timing-related components to ensure safety and long-term engine reliability.
Product Description
Main Description
The Timing Chain Guide Rail Top Left 1356231020 is a critical component within your engine's timing system, designed to maintain proper chain tension and alignment. Over time, the plastic or composite material of the guide rail can become brittle or worn due to constant friction and heat exposure, leading to timing chain slack, rattling noises, or potential engine timing synchronization issues. Replacing this guide rail with a 100% Genuine New component is essential for restoring mechanical stability and preventing further wear on the timing chain and sprockets.
We prioritize accuracy by offering VIN verification to ensure this part matches your specific engine configuration and production year. Our team supports both retail buyers and wholesale partners, providing professional assistance for repair shops and distributors globally. Whether you are performing a routine timing service or addressing specific engine noise, we provide the reliable parts and logistical support needed to keep your vehicle running smoothly and efficiently.
Fitment Note
Fitment for this timing chain guide rail is highly specific to your vehicle's engine model, production date, and regional market specifications. Because timing components vary significantly across different Toyota and Lexus platforms, please provide your full VIN to confirm compatibility before finalizing your purchase to ensure a correct, trouble-free installation.
Buyer Note
We provide comprehensive support for individual retail customers, independent repair shops, and automotive wholesalers. Our team is equipped to handle bulk inquiries and international shipping requirements with care. Please contact us with your specific needs or for assistance with large-scale orders, and we will ensure your parts are processed and dispatched efficiently.
Disclaimer
Notice: Fitment may vary by model, chassis, engine, and production year. Please verify your VIN with us before purchasing to ensure correct fitment.
