Steering Gear Outer Ball Joint 45460-09170 for Toyota Camry
4546009170 - Chassis parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| GAC Toyota | $12.58 | Check Better Price |
Replacements
Alternative OE numbers related to this product.
| Brand | Original OE | Replacement OE |
|---|---|---|
| - | 4546009170 | 4546009140 |
Compatible Models
Vehicle models currently mapped to this OE part.
| # | Brand | Model |
|---|---|---|
| 1 | Toyota | Toyota - General area - Camry: CAMRY (CHINA) - 200605 - 201505 - ACV4#,AHV41 |
Product Overview
OE 45460-09170 is the genuine Toyota OEM steering gear outer ball joint (right) that links the steering rack to the knuckle and sets the steering angle. It fits CAMRY (CHINA), built from 2006 onwards. 12 interchangeable part numbers are listed, including SE-3753R, SE-3751R and CET-121.
Send your OE number or VIN for a wholesale quotation and worldwide shipping.
Technical Specifications
| OE Number | 45460-09170 |
| Part Name | Steering gear outer ball joint (right) |
| Brand | Toyota |
| Position | Front Right |
| Type | Tie Rod End (Outer Track Rod End) |
| Length | 209 mm |
| Cone Size | 13.6 mm |
| Internal Thread | M15x1.5 |
| External Thread | M12x1.25 |
| Fitment | Toyota Camry (CHINA) ACV4# (2AZ-FE 1AZ-FE) 2006-2012 |
OE Cross-Reference
| SE-3753R | 555 |
| SE-3751R | 555 |
| CET-121 | CTR |
| CE0737 | CTR |
| 0121-ACV40RH | Febest |
| JTE7699 | TRW |
| ES80602 | Moog |
| 30226 | Febi |
| TA2995 | Delphi |
| ADT387226 | Blue Print |
| 45037 | Sidem |
| 45460-09140 | Toyota |
Questions and Answers
Which Toyota or Lexus vehicles is 45460-09170 used on?
45460-09170 covers CAMRY (CHINA), with production years from 2006 onwards. Chassis codes include ACV4#, AHV41.
Which chassis codes does 45460-09170 cover?
Chassis codes include ACV4#, AHV41.
What part numbers replace 45460-09170?
Listed on this page are 12 interchangeable numbers for 45460-09170, among them SE-3753R (555), SE-3751R (555), CET-121 (CTR), CE0737 (CTR).
What size is 45460-09170?
Measuring 209 mm long, this Toyota Steering Gear Outer Ball Joint (Right) (part number 45460-09170) is a genuine unit.
How can I verify that 45460-09170 is a genuine Toyota part?
A genuine Steering Gear Outer Ball Joint (Right) shows the Toyota number 45460-09170 on the box label with the country-of-origin marking. On the part itself, the metal carries the supplier’s mark cast or stamped next to Toyota’s own mark, not a separate printed sticker; and the part number is die-stamped or laser-etched into the metal itself rather than printed in ink, and it matches the box label. Documentation is available on request – commercial invoice, packing list and Certificate of Origin.
Is 45460-09170 a front or rear part?
This part is listed for the Front Right position.
How many pieces are needed for 45460-09170?
Sold as one piece per position – check the quantity required for your application.
Is the genuine part worth it compared with an aftermarket equivalent?
What the genuine item buys you is concrete: the OE heat treatment and surface finish help the part resist wear, corrosion and seizing; and the part is machined to OE tolerance, so it mounts and seats without shimming or rework. These are the aftermarket equivalents you may also see quoted.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Steering Knuckle Ball Joint 45503-59145 for Lexus LS460
Steering Gear Outer Ball Joint 45460-49055 for Toyota Highlander
Steering Tie Rod End Right 45046-09591 for Toyota Corolla

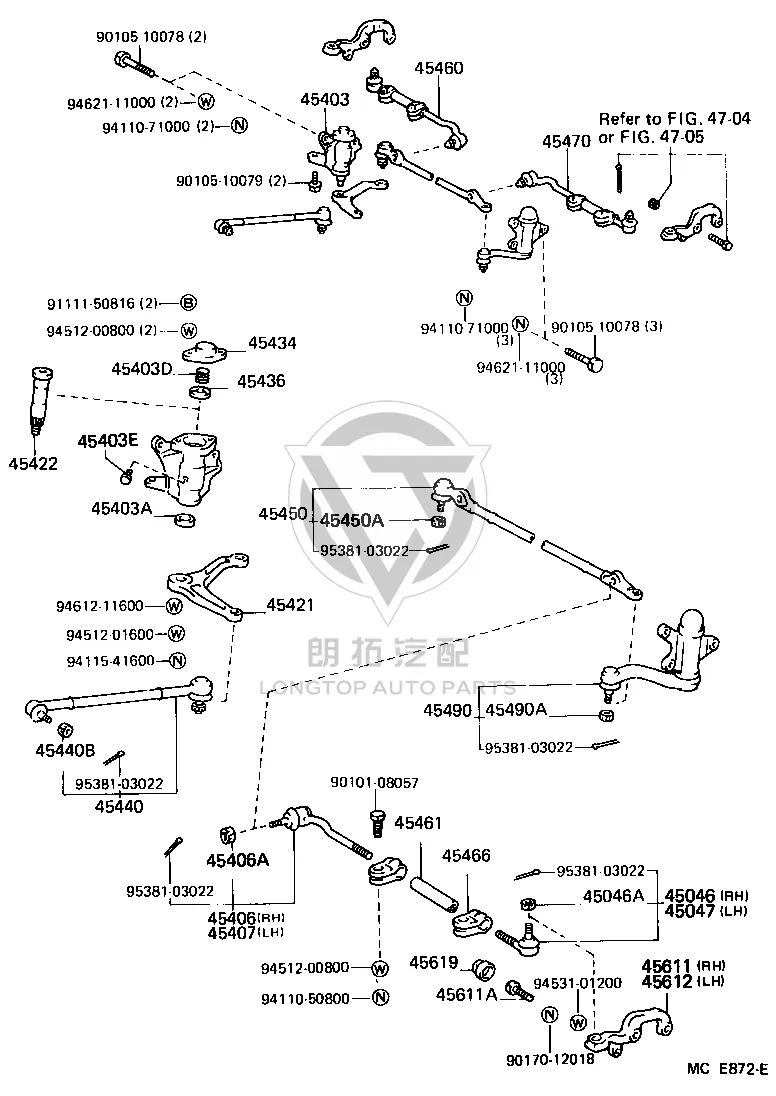

Front Left Outer Tie Rod End 45046-29215 for Toyota Hiace
