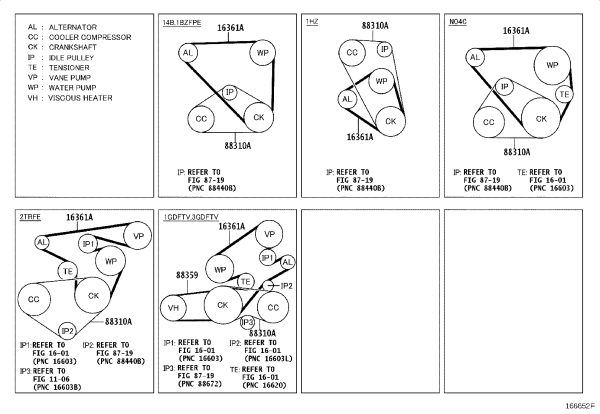

Air Conditioning Pump Belt 90916-02444 for Toyota Coaster
9091602444 - Engine parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $6.51 | Check Better Price |
| GAC Toyota | $6.51 | Check Better Price |
| Imported Toyota | $6.42 | Check Better Price |
| Lexus | $6.42 | Check Better Price |
Compatible Models
Vehicle models currently mapped to this OE part.
Show all 15 mapped vehicle models
More DYNA/TOYOACE Parts
Other genuine toyota parts that fit the DYNA/TOYOACE platform.
Crankshaft Thrust Washer 11011-30010 for Toyota 4RUNNER
1101130010
Exhaust Manifold Gasket 17173-78080 for Toyota Dyna
1717378080
Pump Seal Gasket 16124-75030 for Toyota 4RUNNER
1612475030
Spark Plug 90919-01191 for Toyota 4RUNNER
9091901191
Insurance Chip 90982-09001 for Toyota CELICA
9098209001
Exhaust Pipe Joint Gasket 90917-06078 for Toyota Alphard
9091706078
Spark Plug 90919-01287 for Toyota Fortuner
9091901287
Shift mechanism oil seal 90311-12002 for Toyota 4RUNNER
9031112002
Product Overview
The genuine Toyota air conditioning pump belt, OE 90916-02444, drives the alternator, pump and compressor from the crank pulley. It fits COASTER (CHINA), DYNA 200/TOYOACE G25 and DYNA/TOYOACE, built from 1993 to 2017. 3 interchangeable part numbers are listed, including 9091602334, 9091602359 and 9091602417.
Send your VIN or OE number and we will quote wholesale with worldwide export shipping.
Technical Specifications
| OE Number | 9091602444 |
| Part Name | A/C Compressor Belt |
| Brand | Toyota |
| Position | Front |
| Type | V-Ribbed Belt |
| Length | 1244mm |
| Width | 21mm |
OE Cross-Reference
| 9091602334 | Toyota |
| 9091602359 | Toyota |
| 9091602417 | Toyota |
Questions and Answers
Which Toyota and Lexus models does 90916-02444 fit?
Genuine Toyota Air Conditioning Pump Belt 90916-02444 is used on COASTER (CHINA), DYNA 200/TOYOACE G25 and DYNA/TOYOACE, built from 1993 to 2017.
Which OEM part numbers interchange with 90916-02444?
3 interchangeable part numbers are listed for 90916-02444, including 9091602334 (Toyota), 9091602359 (Toyota), 9091602417 (Toyota).
What size is 90916-02444?
Genuine Toyota Air Conditioning Pump Belt 90916-02444 measures 1244mm long, and 21mm wide.
Is 90916-02444 a front or rear part?
This part is listed for the Front position.
How many pieces are needed for 90916-02444?
Supplied as one piece per position – check the quantity required for your application.
How often should 90916-02444 be replaced?
The service interval is normally every 60,000 to 100,000 km, or as soon as cracking or glazing appears.
Is 90916-02444 the same part across different markets?
As a Toyota Genuine Parts number, 90916-02444 is the same across markets; where another catalog lists a different number for the same function, that number is the superseded one – confirm with our sales team before dispatch.
Is there anything I need to know before installing this part?
Yes. Compare the number on the part with your invoice before installation, and follow the torque values in the service manual.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Generator Belt 90916-02732 for Toyota ALPHARD

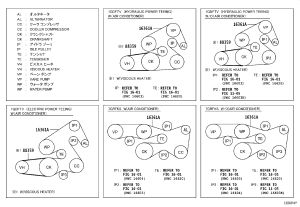

Generator Belt 99364-K0890 for Toyota GRANVIA

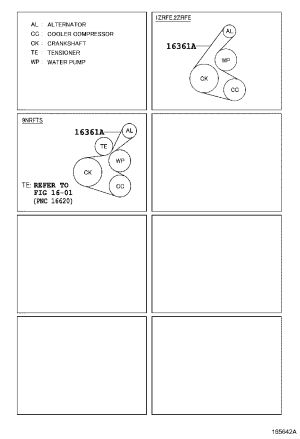

Generator Belt 90916-C2006 for Toyota Corolla
