Rear Brake Disc (Right) 42431-06190 for Toyota C-HR
4243106190 - Chassis parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| GAC Toyota | $27.32 | Check Better Price |
Compatible Models
Vehicle models currently mapped to this OE part.
| # | Brand | Model |
|---|---|---|
| 1 | Toyota | Toyota - General area - C-HR (CHINA) - 201808 - MAXA10,MAXH10 |
| 2 | Toyota | Toyota - General area - FRONT LANDER - 202201 - MXGA10,MXGH10 |
| 3 | Toyota | Toyota - General area - WILDLANDER (GTMC) - 202004 - AXAH5#,AXAL5#,MXAA5 |
| 4 | Toyota | Toyota - General area - Camry Hybrid: CAMRY/HYBRID (CHINA) - 201712 - ASV71,AXVA70,AXVH71,MXVA71 |
| 5 | Toyota | Toyota - General area - Camry Hybrid: CAMRY/HYBRID (CHINA) - 202403 - AXVH80,MXVA80,MXVH80 |
| 6 | Toyota | Toyota - General area - Corolla: COROLLA CROSS (GTMC) - 202201 - MXGA10,MXGH10 |
| 7 | Toyota | Toyota - General area - Yize: C- HR(CHINA) - 201808 - MAXA10,MAXH10 |
| 8 | Toyota | Toyota - General area - Willanda: WILDLANDER - 202004 - AXAH5#,AXAL5#,MXAA5 |
| 9 | Toyota | Toyota - General area - Vesper: VENZA - 202203 - AXUH8#,MXUA8 |
Product Overview
The genuine Toyota rear brake disc (right), OE 42431-06190, provides the friction surface for the brake pads. It is used on C-HR (CHINA), FRONT LANDER, WILDLANDER (GTMC), CAMRY/HYBRID (CHINA), COROLLA CROSS (GTMC) and VENZA, built from 2017 to 2024. 5 cross-reference numbers apply, including 08D41811, 92301403 and 56014NC.
Send your VIN or OE number and we will quote wholesale with worldwide export shipping.
Technical Specifications
| OE Number | 4243106190 |
| Part Name | Brake Disc |
| Brand | Toyota |
| Position | Rear |
| Type | Solid |
| Outer Diameter | 281mm |
| Height | 44mm |
| Thickness | 12mm |
| Min. Thickness | 10.5mm |
OE Cross-Reference
| 08.D418.11 | Brembo |
| 92301403 | Textar |
| 56014NC | Pagid |
| 8DD 355 132-401 | Hella |
| ADT343310 | Blue Print |
Questions and Answers
Which Toyota and Lexus models does 42431-06190 fit?
Genuine Toyota Rear Brake Disc (Right) 42431-06190 is used on C-HR (CHINA), FRONT LANDER, WILDLANDER (GTMC), CAMRY/HYBRID (CHINA), COROLLA CROSS (GTMC) and VENZA, built from 2017 to 2024.
Which OEM part numbers interchange with 42431-06190?
5 interchangeable part numbers are listed for 42431-06190, including 08.D418.11 (Brembo), 92301403 (Textar), 56014NC (Pagid), 8DD 355 132-401 (Hella).
What size is 42431-06190?
Genuine Toyota Rear Brake Disc (Right) 42431-06190 measures 44mm thick, 12mm thick, and 281mm outer diameter.
How can I verify that 42431-06190 is a genuine Toyota part?
Three checks confirm a genuine Rear Brake Disc (Right): the box label shows the ten-character number 42431-06190 alongside the country-of-origin marking; a brake disc rotor carries its discard thickness (MIN TH) cast, engraved or stamped into the hat or outer edge; and the part number is die-stamped or laser-etched into the metal itself rather than printed in ink, and it matches the box label. Commercial invoice, packing list and Certificate of Origin can be provided for any shipment.
Is 42431-06190 a front or rear part?
This part is listed for the Rear position.
How many pieces are needed for 42431-06190?
Supplied as one piece per corner – replace them in pairs (left and right) on the same axle.
Is 42431-06190 the same part across different markets?
As a Toyota Genuine Parts number, 42431-06190 is the same across markets; where another catalog lists a different number for the same function, that number is the superseded one – confirm with our sales team before dispatch.
Is there anything I need to know before installing this part?
Yes. Fit them as an axle set (both sides at once), bed them in over the first 200 km of light braking, and torque the caliper bolts to the service-manual value – do not reuse the caliper bolts.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Front Brake Disc 43516-50010 for Toyota Century
Brake disc No. 1 35681-97201 for Toyota AGYA/WIGO
Front Brake Disc 43512-0P010 for Toyota Crown

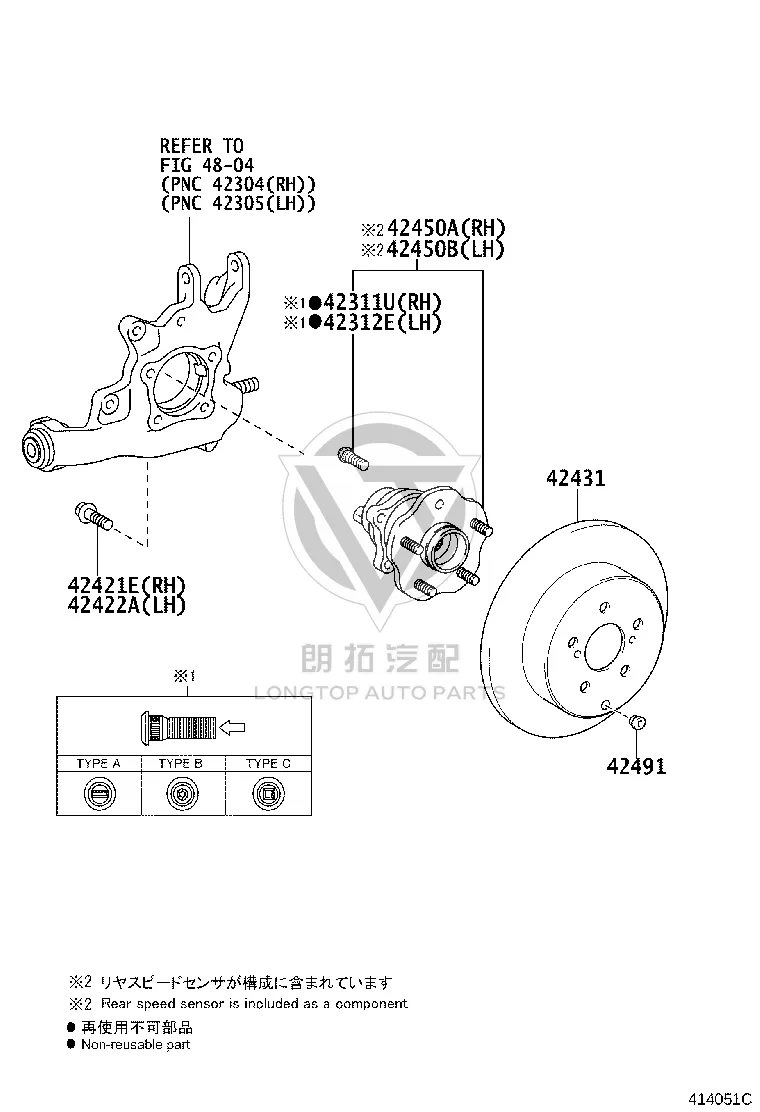

Rear Brake Disc 42431-0E020 for Toyota Sienna
