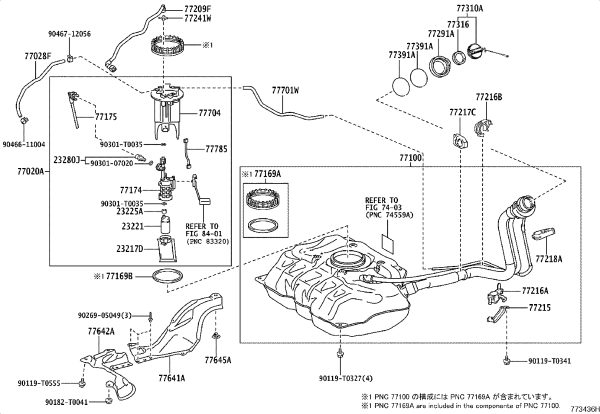

Fixing Pad 77169-52030 for Toyota Vios
7716952030 - Engine parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $1.63 | Check Better Price |
| GAC Toyota | $2.99 | Check Better Price |
| Imported Toyota | $2.24 | Check Better Price |
| Lexus | $2.24 | Check Better Price |
Replacements
Alternative OE numbers related to this product.
| Brand | Original OE | Replacement OE |
|---|---|---|
| - | 7716952030 | 7716952020 |
Compatible Models
Vehicle models currently mapped to this OE part.
Show all 25 mapped vehicle models
| # | Brand | Model |
|---|---|---|
| 1 | Toyota | Toyota - General area - LIMO/VIOS (4D) - 201912 - NSP15 |
| 2 | Toyota | Toyota - General area - LIMO/VIOS - 201912 - NSP15 |
| 3 | Toyota | Toyota - General area - YARIS (5D) - 201310 - NCP15#,NSP15 |
| 4 | Toyota | Toyota - General area - YARIS/VIOS/LIMO (4D) - 201304 - NCP15#,NSP15 |
| 5 | Toyota | Toyota - General area - Vios: VIOS - 200702 - 201403 - NCP9 |
| 6 | Toyota | Toyota - General area - Vios: VIOS/YARIS - 202012 - NSP151 |
| 7 | Toyota | Toyota - General area - Vios: VIOS/YARIS - 202101 - NSP151 |
| 8 | Toyota | Toyota - General area - Vios: VIOS/YARIS - 202303 - NSP15 |
| 9 | Toyota | Toyota - General area - Prius: PRIUS C - 201112 - 202106 - NHP10 |
| 10 | Toyota | Toyota - General area - Prius: PRIUS - 200904 - 201511 - ZVW30 |
| 11 | Toyota | Toyota - General area - Yaris: YARIS - 201310 - NCP15#,NSP15 |
| 12 | Toyota | Toyota - General area - Yaris/Vios/LIMO :YARIS/VIOS/LIMO - 201304 - NCP15#,NSP15 |
| 13 | Toyota | Toyota - Japan - AQUA - 201112 - 202106 - NHP10 |
| 14 | Toyota | Toyota - Japan - Prius: PRIUS(PLUG-IN) LEASE - 200912 - 201010 - ZVW35 |
| 15 | Toyota | Toyota - Europe - AURIS/HYBRID (UKP) - 200702 - 201305 - ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 |
| 16 | Toyota | Toyota - Europe - Prius: PRIUS(PLUG-IN HBD) - 200912 - 201010 - ZVW35 |
| 17 | Toyota | Toyota - Europe - Prius: PRIUS - 200904 - 201511 - ZVW30 |
| 18 | Toyota | Toyota - Europe - Yaris: YARIS (JPP) - 201108 - 201407 - KSP130,NSP130 |
| 19 | Toyota | Toyota - United States/Canada - Vios: VIOS/YARIS - 202303 - NSP15 |
| 20 | Toyota | Toyota - United States/Canada - Prius: PRIUS C - 201112 - 202106 - NHP10 |
| 21 | Toyota | Toyota - United States/Canada - Yaris: YARIS - 201310 - NCP15#,NSP15 |
| 22 | Toyota | Toyota - United States/Canada - Yaris/Vios/LIMO :YARIS/VIOS/LIMO - 201304 - NCP15#,NSP15 |
Product Overview
OE 77169-52030 is the genuine Toyota OEM fixing pad that keeps fuel from seeping past the joint it seals. It fits AQUA, AURIS/HYBRID (UKP), LIMO/VIOS (4D), YARIS (5D, JPP), YARIS/VIOS/LIMO (4D) and VIOS, built from 2007 to 2023. This part also carries one cross-reference number: 77169-52020.
Send your VIN or OE number and we will quote wholesale with worldwide export shipping.
Technical Specifications
| OE Number | 7716952030 |
| Part Name | Gasket Pad |
| Brand | Toyota |
| Position | Fuel tank (fuel pump) |
| Type | Gasket, Fuel Suction (Fuel Pump Tank Seal) |
OE Cross-Reference
| 77169-52020 | Toyota |
Questions and Answers
Which Toyota or Lexus vehicles is 77169-52030 used on?
77169-52030 covers AQUA, AURIS/HYBRID (UKP), LIMO/VIOS (4D), YARIS (5D, JPP), YARIS/VIOS/LIMO (4D) and VIOS, with production years 2007 to 2023.
What part numbers replace 77169-52030?
Listed on this page are 1 interchangeable numbers for 77169-52030, among them 77169-52020 (Toyota).
How can I verify that 77169-52030 is a genuine Toyota part?
Three checks confirm a genuine Fixing Pad: the box label shows the ten-character number 77169-52030 alongside the country-of-origin marking; formed-in-place sealant is black silicone carrying a Toyota part number, applied instead of a pre-formed gasket at oil pan and timing cover joints; and the valve cover gasket is black rubber – a blue gasket in the same job indicates an aftermarket Fel-Pro part. Commercial invoice, packing list and Certificate of Origin can be provided for any shipment.
Is 77169-52030 a front or rear part?
This part is listed for the Fuel tank (fuel pump) position.
How many pieces are needed for 77169-52030?
Sold as one piece per position – check the quantity required for your application.
Is 77169-52030 the same part across different markets?
The Toyota number 77169-52030 is unified across markets; a different number on another catalog is the superseded version – confirm with our sales team before dispatch.
Is there anything I need to know before installing this part?
A few points before you fit it: Relieve the fuel-system pressure before opening any joint, and fit a new O-ring or retainer clip on reassembly.
