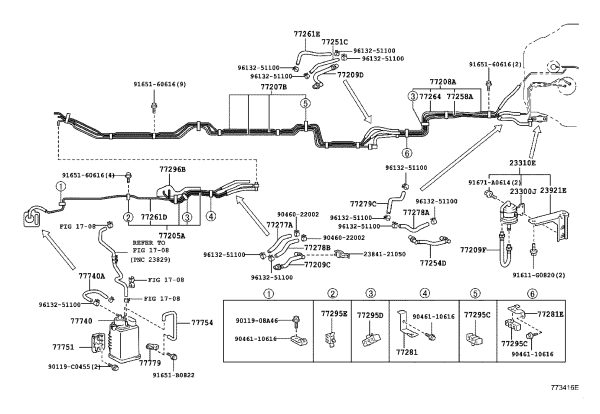

Main Fuel Tube Sub-Assembly 77205-36A10 for Toyota Coaster
7720536A10 - Engine parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $8.14 | Check Better Price |
| Imported Toyota | $8.14 | Check Better Price |
Compatible Models
Vehicle models currently mapped to this OE part.
Product Overview
OE 77205-36A10 is the genuine Toyota OEM main fuel pipe subassembly that carries fuel between the tank, filter and engine. Fits COASTER (CHINA), built from 2000 to 2013. It is mounted in the Underbody fuel system position.
Send your VIN or OE number and we will quote wholesale with worldwide export shipping.
Technical Specifications
| OE Number | 7720536A10 |
| Part Name | Main fuel pipe subassembly |
| Brand | Toyota |
| Position | Underbody fuel system |
| Type | Main Fuel Tube Sub-Assembly |
| Length | 1474mm |
| Width | 53mm |
| Height | 28mm |
Questions and Answers
Which Toyota or Lexus models and years does 77205-36A10 cover?
77205-36A10 fits COASTER (CHINA), built from 2000 to 2013. Chassis codes include BB5#, RZB5#, TRB53, XZB53, GRB53.
Which chassis codes does 77205-36A10 cover?
Chassis codes include BB5#, RZB5#, TRB53, XZB53, GRB53.
What size is 77205-36A10?
77205-36A10 measures 1474mm long, 53mm wide, and 28mm high.
How can I verify that 77205-36A10 is a genuine Toyota part?
Three checks confirm a genuine Main Fuel Pipe Subassembly: the box label shows the ten-character number 77205-36A10 alongside the country-of-origin marking; the pipe number is printed on the body and matches the packaging label, and fuel joints lock with a specific retaining clip rather than a hose clamp; and the hose is moulded to the vehicle’s routing with pre-formed bends and connection diameters, and each position carries its own OE number. Commercial invoice, packing list and Certificate of Origin can be provided for any shipment.
Is 77205-36A10 a front or rear part?
This part is listed for the Underbody fuel system position.
How many pieces are needed for 77205-36A10?
You get one piece per position – check the quantity required for your application.
Is 77205-36A10 the same part across different markets?
This Toyota number 77205-36A10 is unified across markets; if another catalog shows a different number for the same function, that number is the superseded one – confirm before dispatch.
Is there anything I need to know before installing this part?
Worth knowing first: Relieve the fuel-system pressure before opening any joint, and fit a new O-ring or retainer clip on reassembly.
