Fuel Filter Element 23390-11231 for Toyota DYNA
2339011231 - Engine parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $29.96 | Check Better Price |
| GAC Toyota | $31.06 | Check Better Price |
| Imported Toyota | $30.79 | Check Better Price |
Replacements
Alternative OE numbers related to this product.
| Brand | Original OE | Replacement OE |
|---|---|---|
| - | 2339011231 | 2339011230 |
Compatible Models
Vehicle models currently mapped to this OE part.
Show all 29 mapped vehicle models
Product Overview
The genuine Toyota no. 2 Fuel Filter Element Assembly, OE 23390-11231, removes dirt and water from fuel before it reaches the injectors. It fits DYNA, FORTUNER, GRANACE, GRANVIA/HIACE/MAJESTY, GRNVA/HIACE/MJSTY and LAND CRUISER, built from 2007 to 2024. 3 interchangeable part numbers are listed, including 23390-11230, 23390-0E010 and 23390-0E011.
Send your OE number or VIN for a wholesale quotation and worldwide shipping.
Technical Specifications
| OE Number | 2339011231 |
| Part Name | No. 2 Fuel Filter Element Assembly |
| Brand | Toyota |
| Position | No.2 (secondary fuel filter diesel) |
| Type | Element Assy, Fuel Filter, No.2 (No.2 fuel filter element assembly) |
| Height | 79mm |
| Length | 106mm |
| Width | 79mm |
OE Cross-Reference
| 23390-11230 | Toyota |
| 23390-0E010 | Toyota |
| 23390-0E011 | Toyota |
Questions and Answers
Which Toyota or Lexus models and years does 23390-11231 cover?
23390-11231 fits DYNA, FORTUNER, GRANACE, GRANVIA/HIACE/MAJESTY and LAND CRUISER, built from 2007 to 2024.
What is the cross-reference for 23390-11231?
3 numbers interchange with 23390-11231, including 23390-11230 (Toyota), 23390-0E010 (Toyota), 23390-0E011 (Toyota).
What size is 23390-11231?
23390-11231 measures 106mm long, 79mm wide, and 79mm high.
How can I verify that 23390-11231 is a genuine Toyota part?
A genuine No. 2 Fuel Filter Element Assembly shows the Toyota number 23390-11231 on the box label with the country-of-origin marking. On the part itself, the shell is painted all the way down to the lower rim and the TOYOTA typeface is correct, with no extra wording such as USE FOR JAPANESE CAR; and the filter itself carries the Toyota logo, the part number and the supplier name (DENSO) printed on it. Documentation is available on request – commercial invoice, packing list and Certificate of Origin.
Is 23390-11231 a front or rear part?
This part is listed for the No.2 (secondary fuel filter diesel) position.
How many pieces are needed for 23390-11231?
You get one piece per position – check the quantity required for your application.
How often should 23390-11231 be replaced?
Replace it normally every 60,000 to 80,000 km, or per the owner manual.
Is the genuine part worth it compared with an aftermarket equivalent?
The genuine part differs in ways that show up in service: the heat-resistant acrylic rubber gasket stays sealed at temperature instead of hardening and leaking, and the bypass valve opens only at the designed pressure, so a clogged filter cannot starve the engine – many counterfeits omit it entirely. These are the aftermarket equivalents you may also see quoted.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Fuel Filter 77024-33150 for Toyota Camry

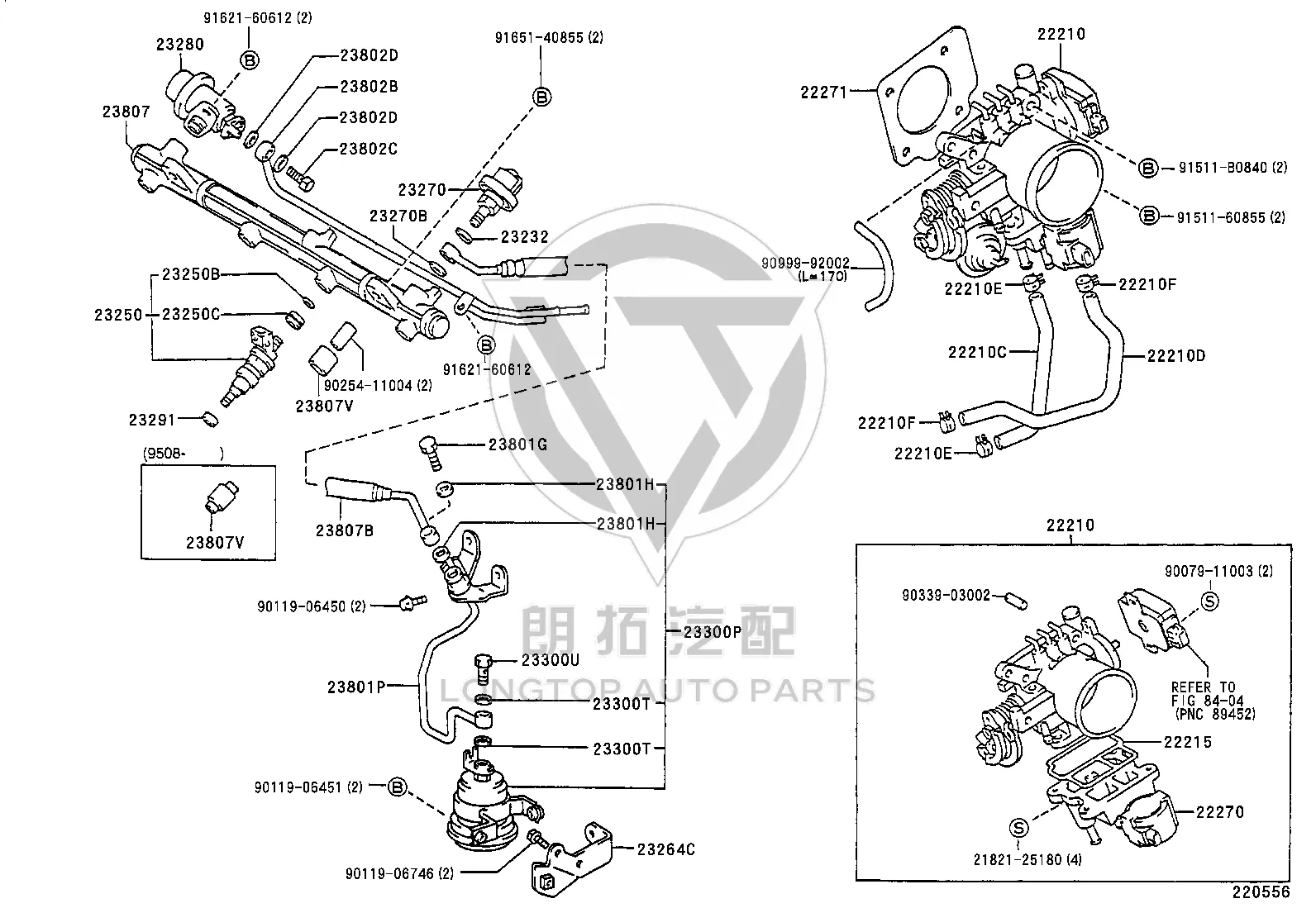

Fuel Filter 23300-79355 for Toyota Corona
