Fuel Filter 77024-42061 for Toyota RAV4
7702442061 - Engine parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $53.97 | Check Better Price |
| GAC Toyota | $52.48 | Check Better Price |
| Imported Toyota | $53.40 | Check Better Price |
| Lexus | $53.23 | Check Better Price |
Replacements
Alternative OE numbers related to this product.
| Brand | Original OE | Replacement OE |
|---|---|---|
| - | 7702442061 | 7702442060 |
Compatible Models
Vehicle models currently mapped to this OE part.
Product Overview
The genuine Toyota fuel Filter, OE 77024-42061, removes dirt and water from fuel before it reaches the injectors. It fits RAV4 and RAV4/VANGUARD, built from 2005 onwards. 2 interchangeable part numbers are listed, including ADT32396 and 77024-42060.
Send your VIN or OE number for a wholesale quotation with worldwide export shipping.
Technical Specifications
| OE Number | 7702442061 |
| Part Name | Fuel Filter |
| Brand | Toyota |
| Type | Fuel Filter (In-tank / In-Line Filter) |
| Length | 161mm |
| Width | 141mm |
| Height | 125mm |
| Outer Diameter | 135mm |
| Country of Origin | Japan |
OE Cross-Reference
| ADT32396 | Blue Print |
| 77024-42060 | Toyota |
Questions and Answers
Which Toyota or Lexus models and years does 77024-42061 cover?
77024-42061 fits RAV4 and RAV4/VANGUARD, built from 2005 onwards. Chassis codes include ACA3#, ALA3#, GSA33, ZSA3#.
Which chassis codes does 77024-42061 cover?
Chassis codes include ACA3#, ALA3#, GSA33, ZSA3#.
What is the cross-reference for 77024-42061?
2 numbers interchange with 77024-42061, including ADT32396 (Blue Print), 77024-42060 (Toyota).
What are the dimensions of 77024-42061?
77024-42061 measures 161mm long, 141mm wide, 125mm high, and 135mm outer diameter.
How can I verify that 77024-42061 is a genuine Toyota part?
Check three things: (1) the box label carries the ten-character Toyota number 77024-42061 together with the country-of-origin marking; (2) the filter carries both an anti-drainback valve and a bypass valve that opens only at the designed pressure when the element is clogged; (3) the shell is painted all the way down to the lower rim and the TOYOTA typeface is correct, with no extra wording such as USE FOR JAPANESE CAR. We can supply the commercial invoice, packing list and, on request, a Certificate of Origin for any shipment.
How many pieces are needed for 77024-42061?
You get one piece per position – check the quantity required for your application.
How often should 77024-42061 be replaced?
Replace it normally every 60,000 to 80,000 km, or per the owner manual.
What documentation comes with an order?
Commercial invoice and packing list accompany every shipment, and a Certificate of Origin can be issued on request; the part number is printed on the shell, so you can match it against the invoice.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Fuel Pump Core Filter Screen 23217-31080 for Toyota Alphard
Fuel Filter 77024-48040 for Toyota Highlander
Fuel filter 77024-12170 for Toyota Corolla

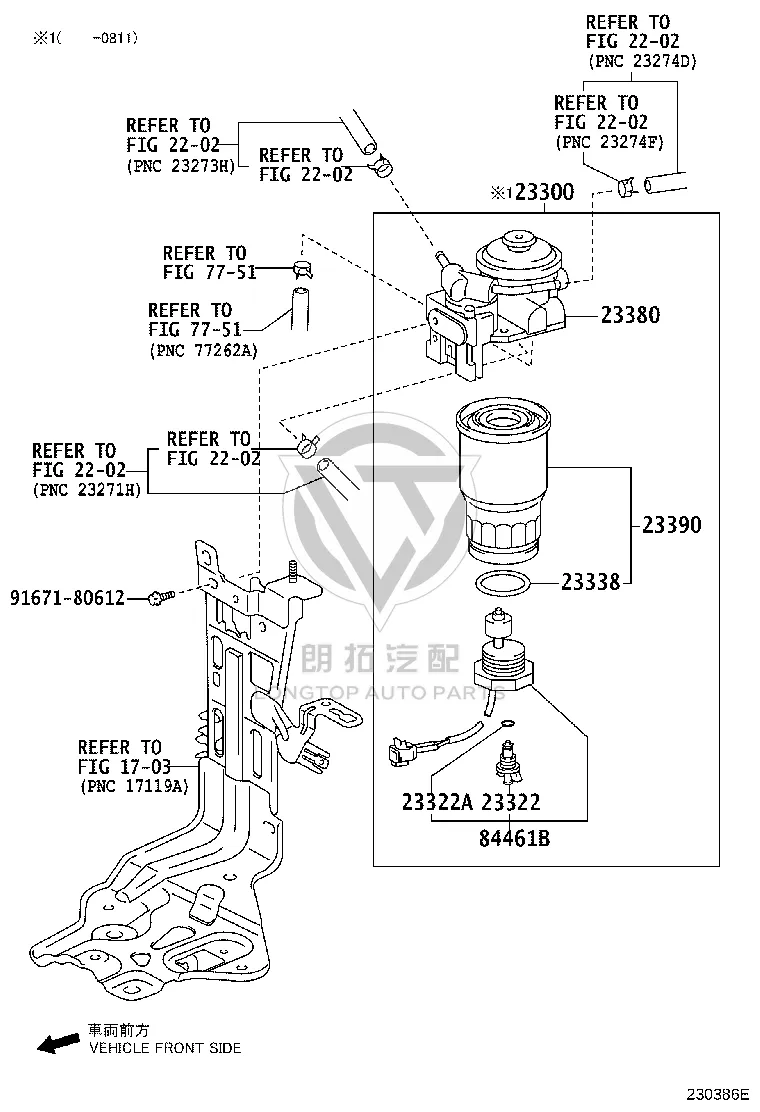

Fuel filter 23390-33030 for Toyota RAV4
