Fuel Filter 77024-07040 for Toyota Avalon
7702407040 - Engine parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $38.84 | Check Better Price |
Compatible Models
Vehicle models currently mapped to this OE part.
| # | Brand | Model |
|---|---|---|
| 1 | Toyota | Toyota - General area - AVALON (CHINA) - 201903 - AXXA50,AXXH50,MXXA50 |
| 2 | Toyota | Toyota - General area - Asian Dragon: AVALON (CHINA) - 201903 - AXXA50,AXXH5#,MXXA50,MXXH50 |
| 3 | Toyota | Toyota - General area - Asian Dragon: AVALON (CHINA) - 201903 - AXXA50,AXXH50,MXXA50 |
Product Overview
This is a genuine Toyota OEM fuel filter, OE 77024-07040, which removes dirt and water from fuel before it reaches the injectors. It is used on AVALON (CHINA), built from 2019 onwards. It is supplied as a In-tank (Avalon China).
Ask for a wholesale quotation with your VIN or OE number; we ship worldwide.
Technical Specifications
| OE Number | 7702407040 |
| Part Name | Fuel Filter |
| Brand | Toyota |
| Type | In-tank (Avalon China) |
| Country of Origin | Japan |
Questions and Answers
Which Toyota or Lexus vehicles is 77024-07040 used on?
77024-07040 covers AVALON (CHINA), with production years from 2019 onwards. Chassis codes include AXXA50, AXXH5#, MXXA50, MXXH50, AXXH50.
Which chassis codes does 77024-07040 cover?
Chassis codes include AXXA50, AXXH5#, MXXA50, MXXH50, AXXH50.
How can I verify that 77024-07040 is a genuine Toyota part?
To verify this Fuel Filter, look for the ten-character number 77024-07040 on the box label together with the country-of-origin marking, then check that the element uses a daisy-shaped or crystal-type pleat pattern rather than a plain straight fold, with a smooth adhesive line bonding the media to the end caps, and that the filter carries both an anti-drainback valve and a bypass valve that opens only at the designed pressure when the element is clogged. We can provide the invoice, packing list and CoO for any order.
How many pieces are needed for 77024-07040?
Sold as one piece per position – check the quantity required for your application.
How often should 77024-07040 be replaced?
For this application, replacement is normally every 60,000 to 80,000 km, or per the owner manual.
Is there anything I need to know before installing this part?
A few points before you fit it: Relieve the fuel-system pressure before opening any joint, and fit a new O-ring or retainer clip on reassembly.
Is the genuine part worth it compared with an aftermarket equivalent?
What the genuine item buys you is concrete: the bypass valve opens only at the designed pressure, so a clogged filter cannot starve the engine – many counterfeits omit it entirely; and the heat-resistant acrylic rubber gasket stays sealed at temperature instead of hardening and leaking.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products

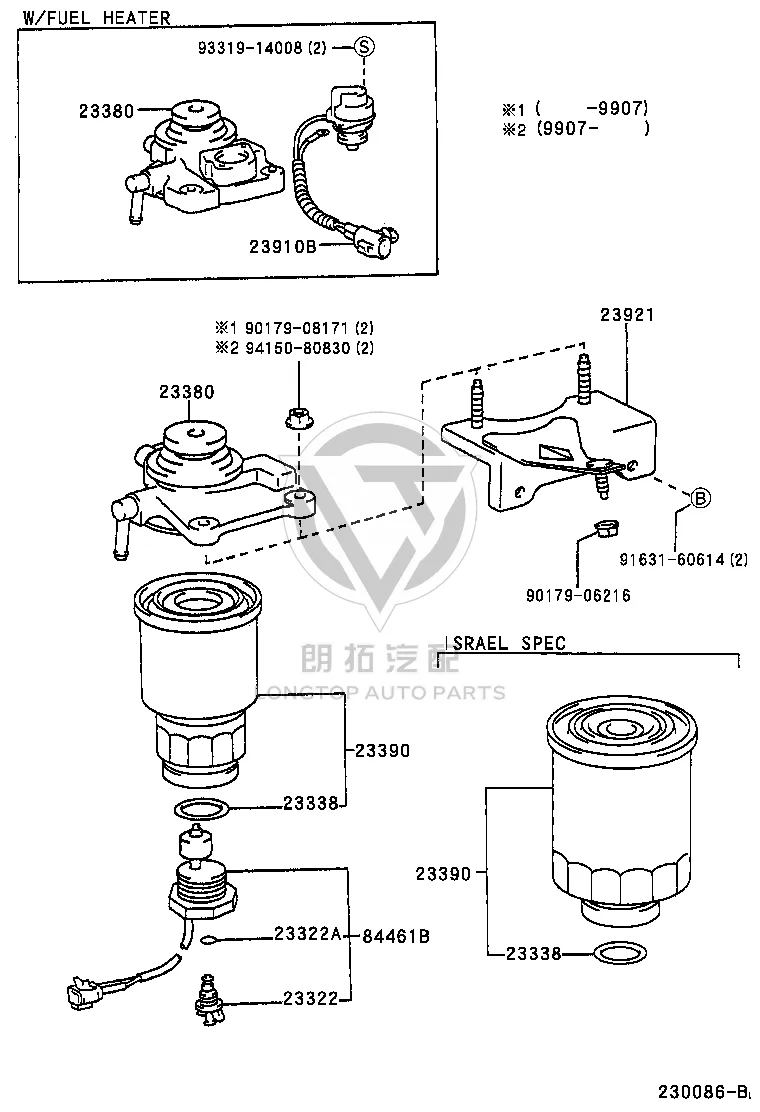

Fuel Filter 23390-30350 for Toyota Land Cruiser Prado
