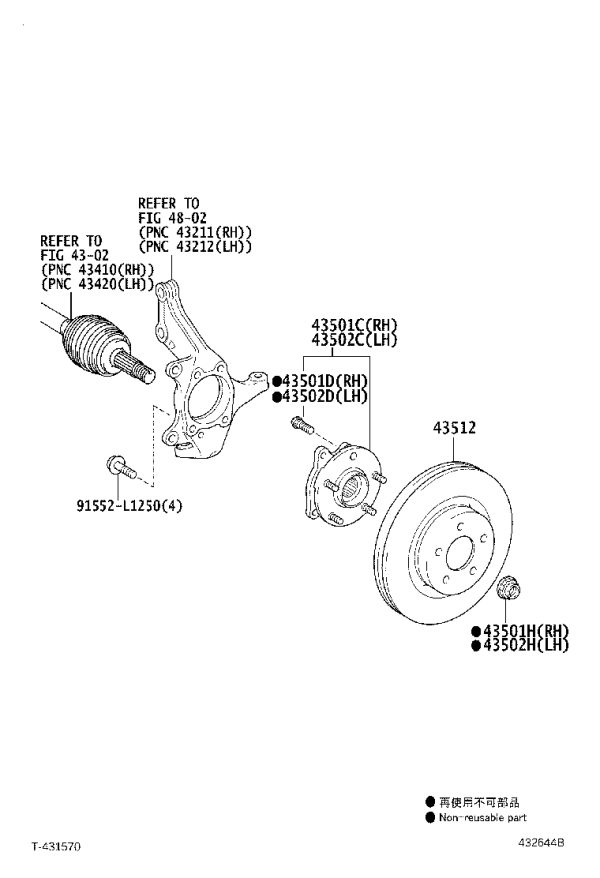

Front Right Brake Rotor 43512-0R020 for Toyota RAV4
435120R020 - Chassis parts
Replacements
Alternative OE numbers related to this product.
| Brand | Original OE | Replacement OE |
|---|---|---|
| - | 435120R020 | 4351202250 |
Compatible Models
Vehicle models currently mapped to this OE part.
| # | Brand | Model |
|---|---|---|
| 1 | Toyota | Toyota - United States/Canada - Rong Fang: RAV4 (NAP) - 200811 - 201301 - ASA3#,GSA3 |
| 2 | Toyota | Toyota - United States/Canada - Rong Fang: RAV4 (NAP) - 201301 - 201811 - ASA4 |
| 3 | Toyota | Toyota - United States/Canada - Rong Fang, Pure Electricity: RAV4 EV - 201204 - 201408 - QEA38 |
Product Overview
The genuine Toyota front brake disc (right), OE 43512-0R020, provides the friction surface for the brake pads. It fits RAV4 (NAP) and RAV4 EV, built from 2008 to 2013. 13 interchangeable part numbers are listed, including 108384, ADT343206 and 09A41710.
Send your OE number or VIN for a wholesale quotation and worldwide shipping.
Technical Specifications
| OE Number | 435120R020 |
| Part Name | Brake Disc |
| Brand | Toyota |
| Position | Front |
| Type | Vented |
| Outer Diameter | 296mm |
| Height | 49.3mm |
| Thickness | 28mm |
| Min. Thickness | 25mm |
OE Cross-Reference
| 108384 | Febi |
| ADT343206 | Blue Print |
| 09.A417.10 | Brembo |
| 09.A417.11 | Brembo |
| 92168800 | Textar |
| 92168803 | Textar |
| 92235000 | Textar |
| DF4828S | TRW |
| DF7399 | TRW |
| 09.A417.21 | Brembo |
| 0 986 479 617 | Bosch |
| 24.0128-0159.1 | ATE |
| BG4114 | Delphi |
Questions and Answers
Which Toyota or Lexus vehicles is 43512-0R020 used on?
43512-0R020 covers RAV4 (NAP) and RAV4 EV, with production years 2008 to 2013. Chassis codes include ASA3#, GSA3#, ASA4#, QEA38.
Which chassis codes does 43512-0R020 cover?
Chassis codes include ASA3#, GSA3#, ASA4#, QEA38.
What part numbers replace 43512-0R020?
Listed on this page are 13 interchangeable numbers for 43512-0R020, among them 108384 (Febi), ADT343206 (Blue Print), 09.A417.10 (Brembo), 09.A417.11 (Brembo).
What size is 43512-0R020?
Measuring 49.3mm thick, 28mm thick, and 296mm outer diameter, this Toyota Front Brake Disc (Right) (part number 43512-0R020) is a genuine unit.
How can I verify that 43512-0R020 is a genuine Toyota part?
A genuine Front Brake Disc (Right) shows the Toyota number 43512-0R020 on the box label with the country-of-origin marking. On the part itself, the part number is die-stamped or laser-etched into the metal itself rather than printed in ink, and it matches the box label; and the metal carries the supplier’s mark cast or stamped next to Toyota’s own mark, not a separate printed sticker. Documentation is available on request – commercial invoice, packing list and Certificate of Origin.
Is 43512-0R020 a front or rear part?
This part is listed for the Front position.
How many pieces are needed for 43512-0R020?
Sold as one piece per corner – replace them in pairs (left and right) on the same axle.
Is the genuine part worth it compared with an aftermarket equivalent?
What the genuine item buys you is concrete: the part is machined to OE tolerance, so it mounts and seats without shimming or rework; and the OE heat treatment and surface finish help the part resist wear, corrosion and seizing. These are the aftermarket equivalents you may also see quoted.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Rear Brake Disc (Right) 42431-0P010 for Toyota Crown
Front Brake Disc 43512-0E030 for Toyota Sienna

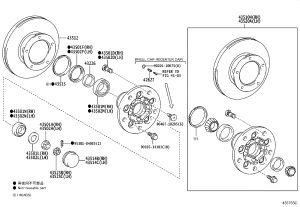

Front Brake Disc 43512-36171 for Toyota Coaster
