Front Lower Control Arm (Right) 48620-0N010 for Toyota Crown
486200N010 - Chassis parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| FAW Toyota | $97.26 | Check Better Price |
| Imported Toyota | $106.23 | Check Better Price |
Compatible Models
Vehicle models currently mapped to this OE part.
Product Overview
This is a genuine Toyota OEM front lower control arm (right), OE 48620-0N010, which positions the wheel hub and allows vertical travel while keeping alignment. It fits CROWN (CHINA) and REIZ, built from 2005 to 2010. 5 interchangeable part numbers are listed, including 48640-0N010, 48620-30290 and 48640-30290.
Ask for a wholesale quotation with your VIN or OE number; we ship worldwide.
Technical Specifications
| OE Number | 486200N010 |
| Part Name | Front lower control arm (right) |
| Brand | Toyota |
| Position | Front Right |
| Type | Lower Control Arm |
| Length | 286 mm |
| Inner Diameter | 14 mm |
| Weight | 4.251 kg |
| Material | Steel |
| Fitment | Lexus GS300/GS430/GS460 2005-2011 (GRS190 URS190 UZS190), Lexus IS250/IS300 (GSE22 GSE2#), Toyota Crown/Reiz (GRS182 GRX120 GRS202 GRX130) |
OE Cross-Reference
| 48640-0N010 | Toyota |
| 48620-30290 | Toyota |
| 48640-30290 | Toyota |
| 48640-0N020 | Toyota |
| 48620-0N020 | Toyota |
Questions and Answers
Which Toyota and Lexus models does 48620-0N010 fit?
Genuine Toyota Front Lower Control Arm (Right) 48620-0N010 is used on CROWN (CHINA) and REIZ, built from 2005 to 2010. Chassis codes include GRS18#, GRS20#, UZS200, GRX12#, GRX13#.
Which chassis codes does 48620-0N010 cover?
Chassis codes include GRS18#, GRS20#, UZS200, GRX12#, GRX13#.
Which OEM part numbers interchange with 48620-0N010?
5 interchangeable part numbers are listed for 48620-0N010, including 48640-0N010 (Toyota), 48620-30290 (Toyota), 48640-30290 (Toyota), 48640-0N020 (Toyota).
What are the dimensions of 48620-0N010?
Genuine Toyota Front Lower Control Arm (Right) 48620-0N010 measures 286 mm long, and 14 mm inner diameter. It uses a Steel material.
How can I verify that 48620-0N010 is a genuine Toyota part?
To verify this Front Lower Control Arm (Right), look for the ten-character number 48620-0N010 on the box label together with the country-of-origin marking, then check that the casting carries a raised maker mark (AISIN / TOYOTA / TEQ) with a small raised circle beside it giving the casting month and year, and that the part number is die-stamped or laser-etched into the metal itself rather than printed in ink, and it matches the box label. We can provide the invoice, packing list and CoO for any order.
Where is 48620-0N010 installed on the vehicle?
It is fitted in the Front Right position.
How many pieces are needed for 48620-0N010?
Supplied as one piece per position – check the quantity required for your application.
Is there anything I need to know before installing this part?
Yes. Torque the fasteners with the suspension at ride height and have the alignment checked afterwards.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Rear Upper Control Arm 48710-60121 for Toyota Land Cruiser
Front Lower Hem Arm (Left) 48069-02340 for Toyota Allion
Front Upper Swing Arm 48630-39085 for Toyota Crown

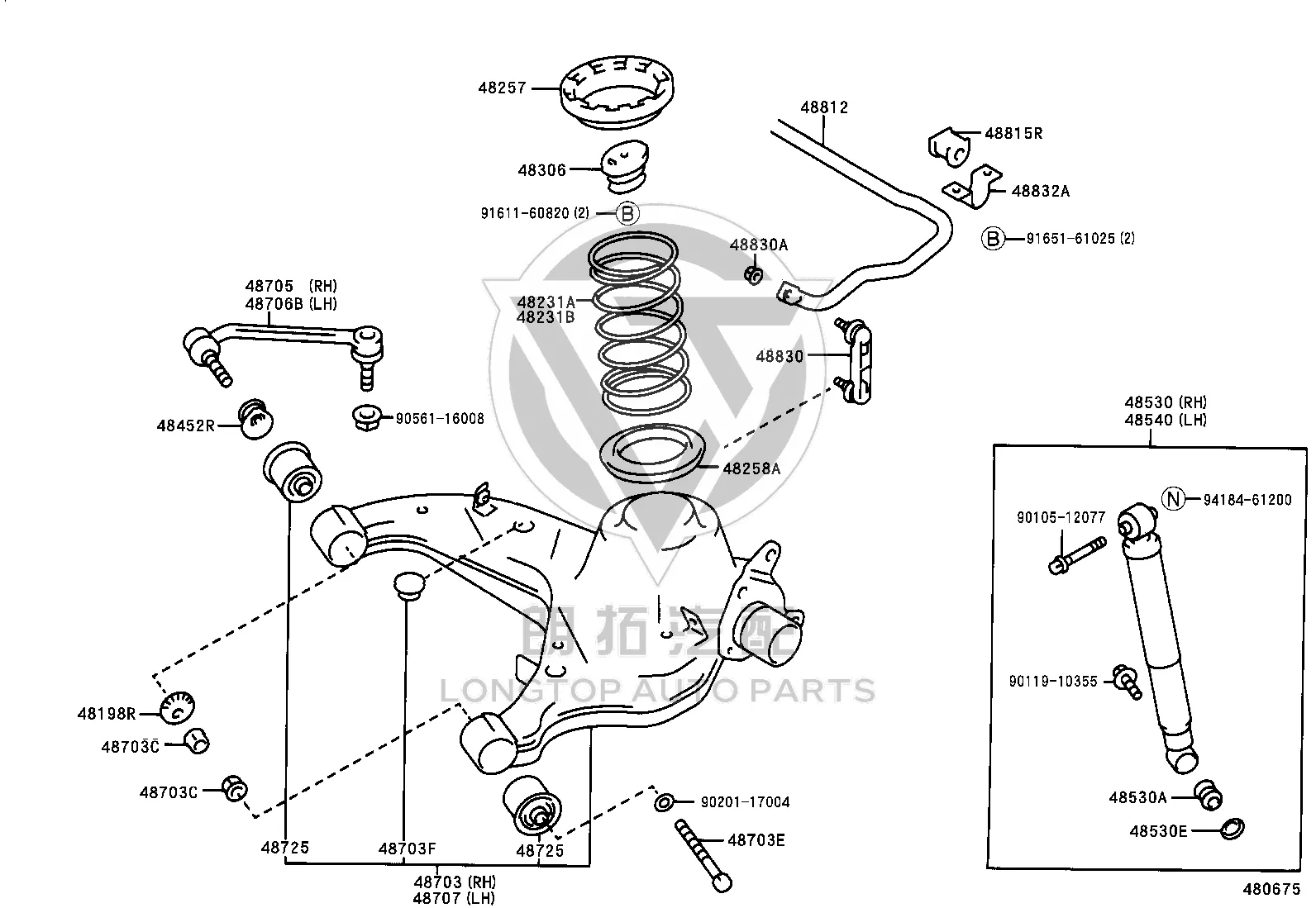

Rear Positioning Arm 48705-30060 for Toyota Crown
