Toyota Hilux Front Brake Disc (Right) 435120K070
435120K070 - Chassis parts
Replacements
Alternative OE numbers related to this product.
| Brand | Original OE | Replacement OE |
|---|---|---|
| - | 435120K070 | 435120K071 |
| - | 435120K070 | 435120K060 |
Compatible Models
Vehicle models currently mapped to this OE part.
Product Overview
OE 43512-0K070 is the genuine Toyota OEM front brake disc (right) that provides the friction surface for the brake pads. It fits HILUX, built from 2004 to 2015. 5 interchangeable part numbers are listed, including 590282020, 240125-01921 and BG4211C.
Send your OE number or VIN for a wholesale quotation and worldwide shipping.
Technical Specifications
| OE Number | 435120K070 |
| Part Name | Brake Disc |
| Brand | Toyota |
| Position | Front |
| Type | Vented |
| Outer Diameter | 297mm |
| Height | 67mm |
| Thickness | 25mm |
| Min. Thickness | 23mm |
OE Cross-Reference
| 590.2820.20 | Zimmermann |
| 24.0125-0192.1 | ATE |
| BG4211C | Delphi |
| ADT343211 | Blue Print |
| B130764 | Denckermann |
Questions and Answers
Which Toyota and Lexus models does 43512-0K070 fit?
Genuine Toyota Front Brake Disc (Right) 43512-0K070 is used on HILUX, built from 2004 to 2015.
Which OEM part numbers interchange with 43512-0K070?
5 interchangeable part numbers are listed for 43512-0K070, including 590.2820.20 (Zimmermann), 24.0125-0192.1 (ATE), BG4211C (Delphi), ADT343211 (Blue Print).
What size is 43512-0K070?
Genuine Toyota Front Brake Disc (Right) 43512-0K070 measures 67mm thick, 25mm thick, and 297mm outer diameter.
How can I verify that 43512-0K070 is a genuine Toyota part?
A genuine Front Brake Disc (Right) shows the Toyota number 43512-0K070 on the box label with the country-of-origin marking. On the part itself, a brake disc rotor carries its discard thickness (MIN TH) cast, engraved or stamped into the hat or outer edge; and the part number is die-stamped or laser-etched into the metal itself rather than printed in ink, and it matches the box label. Documentation is available on request – commercial invoice, packing list and Certificate of Origin.
Is 43512-0K070 a front or rear part?
This part is listed for the Front position.
How many pieces are needed for 43512-0K070?
Supplied as one piece per corner – replace them in pairs (left and right) on the same axle.
Is the genuine part worth it compared with an aftermarket equivalent?
The genuine part earns its price in details that matter over time: the non-directional ground finish on a genuine rotor beds the pads in quickly for even braking; and the part is machined to OE tolerance, so it mounts and seats without shimming or rework. These are the aftermarket equivalents you may also see quoted.
What documentation comes with an order?
Every shipment can include the commercial invoice and packing list, and on request a Certificate of Origin; the part number is die-stamped or laser-etched into the metal, so you can match it against the invoice.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products
Front Brake Disc Right 43512-02390 for Toyota Corolla
No.2 3rd Brake Disc Assembly 35067-30021 for Toyota ALTEZZA

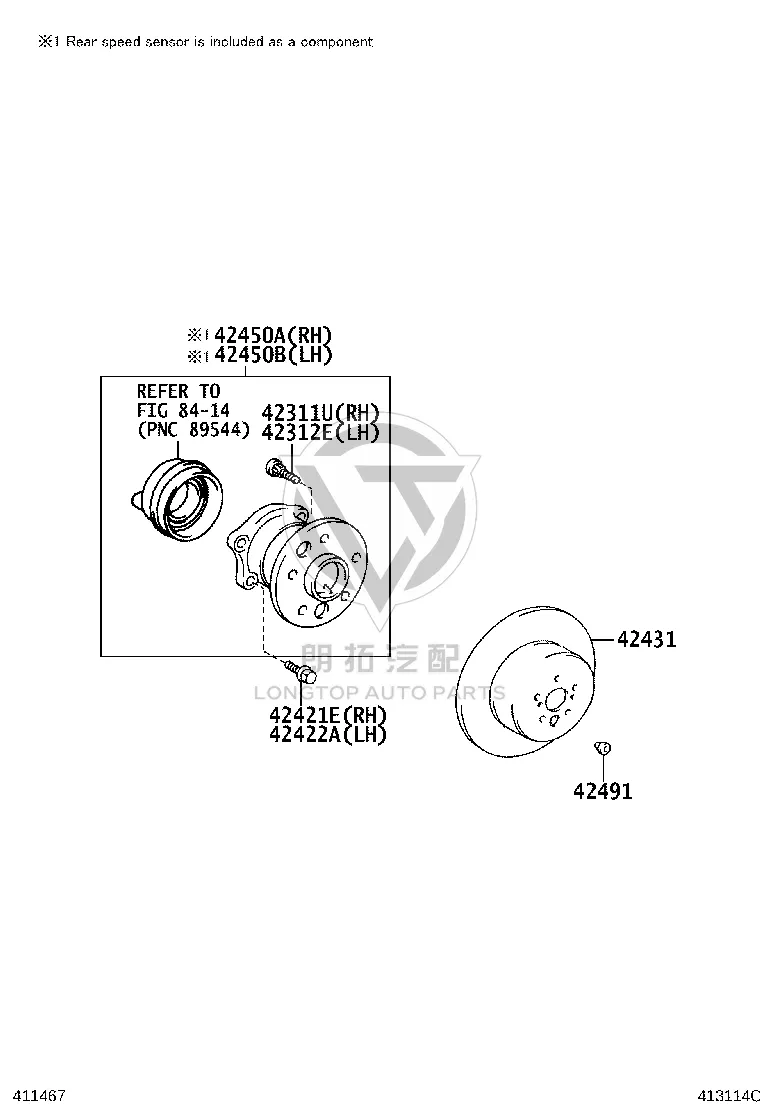

Rear Brake Disc 42431-06170 for Toyota Camry
