Front Brake Disc (Right) 435120-E040 for Toyota Highlander
435120E040 - Chassis parts
Price Details
Dealer Price ≠ Your Price
Official dealer price is only a benchmark. Your LongTop quote is significantly lower.
| Brand | Longtop Supply Quote | Action |
|---|---|---|
| GAC Toyota | $30.18 | Check Better Price |
Compatible Models
Vehicle models currently mapped to this OE part.
Product Overview
This is a genuine Toyota OEM front brake disc (right), OE 43512-0E040, which provides the friction surface for the brake pads. It is used on HIGHLANDER (CHINA), built from 2009 to 2015. 4 cross-reference numbers apply, including 09C49911, 92259405 and 55594NHC.
Ask for a wholesale quotation with your VIN or OE number; we ship worldwide.
Technical Specifications
| OE Number | 435120E040 |
| Part Name | Brake Disc |
| Brand | Toyota |
| Position | Front |
| Type | Vented |
| Outer Diameter | 328mm |
| Height | 49mm |
| Thickness | 28mm |
| Min. Thickness | 25mm |
OE Cross-Reference
| 09.C499.11 | Brembo |
| 92259405 | Textar |
| 55594NHC | Pagid |
| DDF2518C-1-D | Ferodo |
Questions and Answers
Which Toyota or Lexus vehicles is 43512-0E040 used on?
43512-0E040 covers HIGHLANDER (CHINA), with production years 2009 to 2015. Chassis codes include ASU40, GSU45, ASU5#, GSU55.
Which chassis codes does 43512-0E040 cover?
Chassis codes include ASU40, GSU45, ASU5#, GSU55.
What part numbers replace 43512-0E040?
Listed on this page are 4 interchangeable numbers for 43512-0E040, among them 09.C499.11 (Brembo), 92259405 (Textar), 55594NHC (Pagid), DDF2518C-1-D (Ferodo).
What are the dimensions of 43512-0E040?
Measuring 49mm thick, 28mm thick, and 328mm outer diameter, this Toyota Front Brake Disc (Right) (part number 43512-0E040) is a genuine unit.
How can I verify that 43512-0E040 is a genuine Toyota part?
To verify this Front Brake Disc (Right), look for the ten-character number 43512-0E040 on the box label together with the country-of-origin marking, then check that the part number is die-stamped or laser-etched into the metal itself rather than printed in ink, and it matches the box label, and that the metal carries the supplier’s mark cast or stamped next to Toyota’s own mark, not a separate printed sticker. We can provide the invoice, packing list and CoO for any order.
Where is 43512-0E040 installed on the vehicle?
It is fitted in the Front position.
How many pieces are needed for 43512-0E040?
Sold as one piece per corner – replace them in pairs (left and right) on the same axle.
Is there anything I need to know before installing this part?
A few points before you fit it: Fit them as an axle set (both sides at once), bed them in over the first 200 km of light braking, and torque the caliper bolts to the service-manual value – do not reuse the caliper bolts.
FIND THE RIGHT OE PART
Precision in Every Part. Excellence in Every Price.
Typically replies within 10 mins
Recommended Products

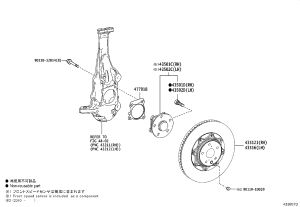

Front Brake Disc 43516-50010 for Toyota Century

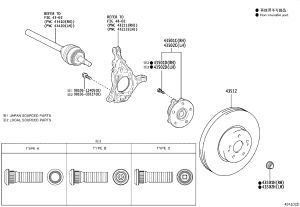

Front Brake Disc 43512-F4030 for Toyota AVALON
